Metal Roller Pin Buckles – 17mm, 22mm & 30mm

Description

Metal Roller Pin Buckles

This series includes three roller pin buckle sizes for straps, belts and webbing assemblies. Select the appropriate option according to the required strap opening and finished-product structure.

Available Sizes

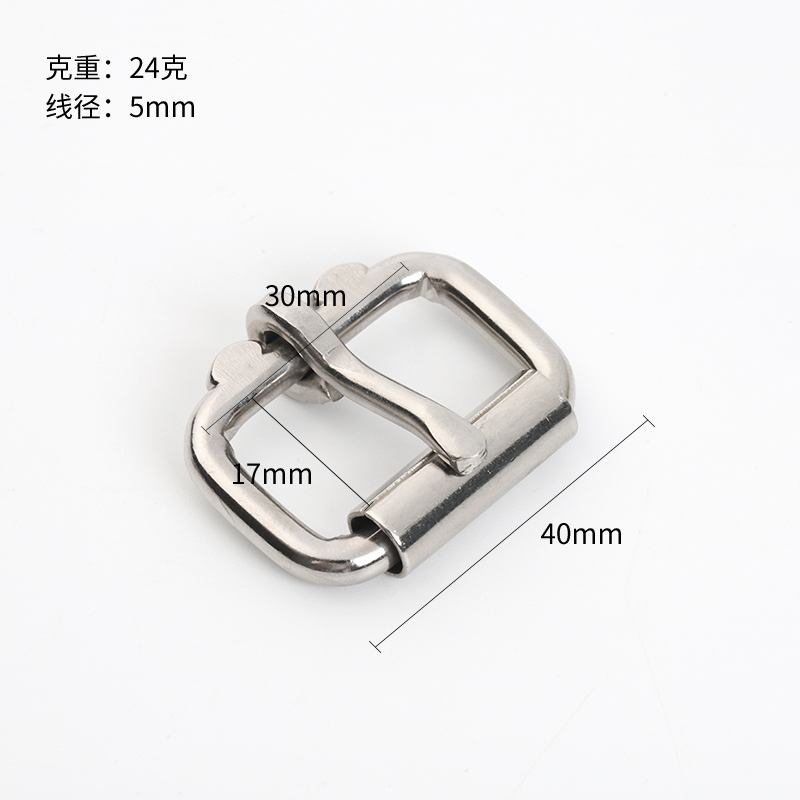

A – 30mm
Strap opening: 30 mm
Inner depth: 17 mm
Wire diameter: 5.0 mm
Approximate unit weight: 24 g

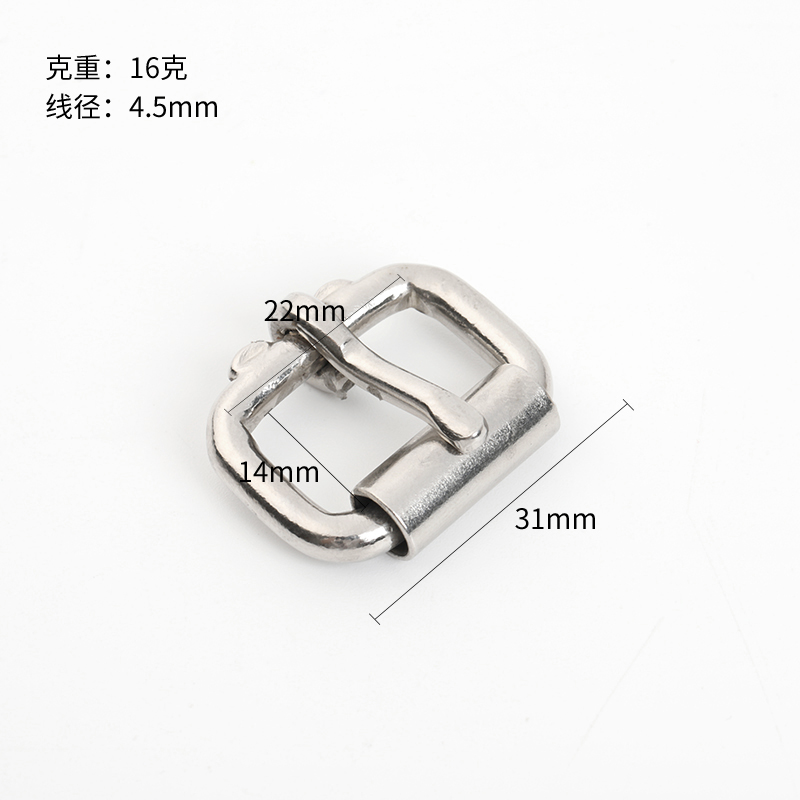

B – 22mm
Strap opening: 22 mm
Inner depth: 14 mm
Wire diameter: 4.5 mm
Approximate unit weight: 16 g

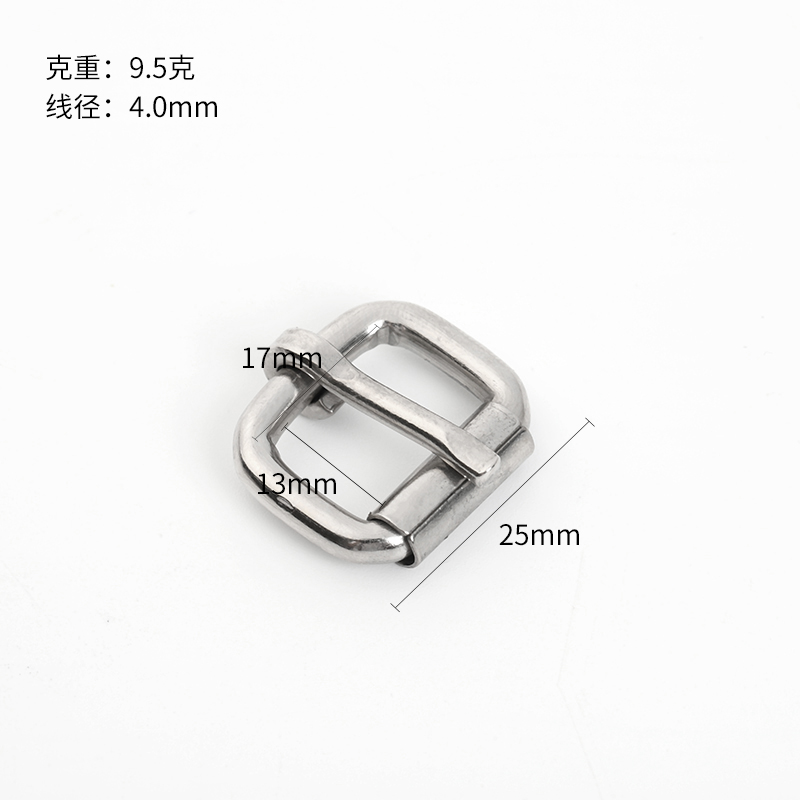

C – 17mm
Strap opening: 17 mm
Inner depth: 13 mm
Wire diameter: 4.0 mm
Approximate unit weight: 9.5 g

Selection Guide

Confirm the strap width and thickness before selecting a buckle. The strap should pass through the buckle smoothly while maintaining suitable positioning around the roller and pin.

Sample fitting is recommended before bulk production because strap thickness and finished-product construction may affect compatibility.

Important Notes

Dimensions are based on the markings shown in the product images and may have minor manual-measurement tolerances. Unit weights are approximate. Material grade and rated load have not been specified and should be confirmed before use in load-bearing applications.

Technical Resources

• Metal Hardware Size Guide — check opening size, webbing width and fit before ordering.
• Metal Hardware Surface Finish Guide — compare common finishes and appearance considerations.
• Metal Hardware Quality Inspection Checklist — review dimensional, functional and surface checks.
• Custom Metal Hardware Manufacturing Process — learn how custom dimensions and finishes are evaluated.

Need a sample or custom specification? Contact Jinxing Hardware with the required style, dimensions, finish and intended application.
