25mm Webbing Hooks & Double-Slot Slider – 3 Styles

Description

25mm webbing hooks and slider

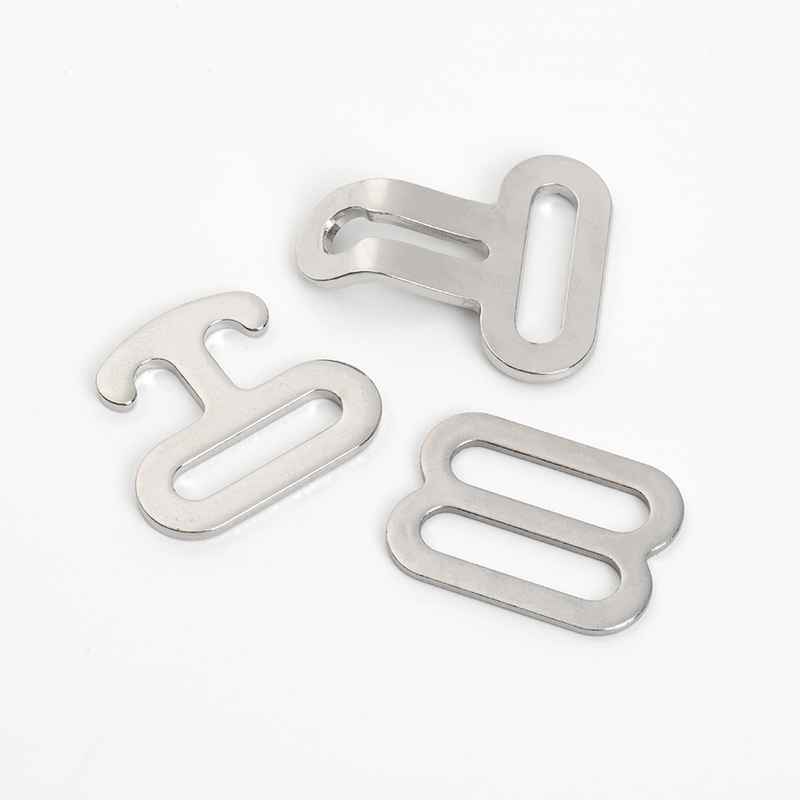

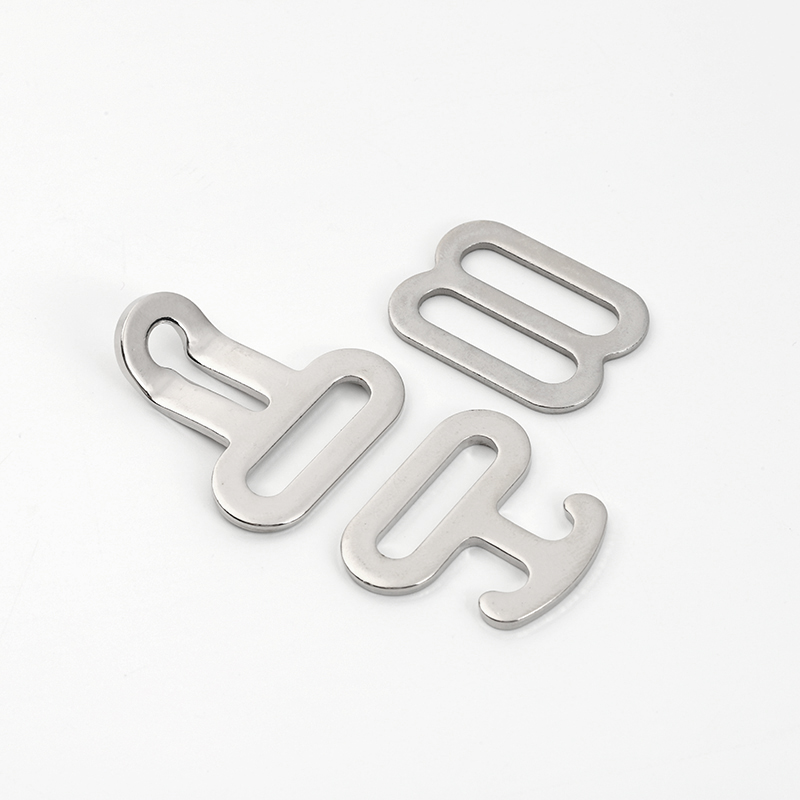

This product series includes three metal hardware structures for approximately 25 mm webbing. Choose between a double-slot slider, slotted hook and double-ended hook according to the required connection or adjustment method.

Available Styles

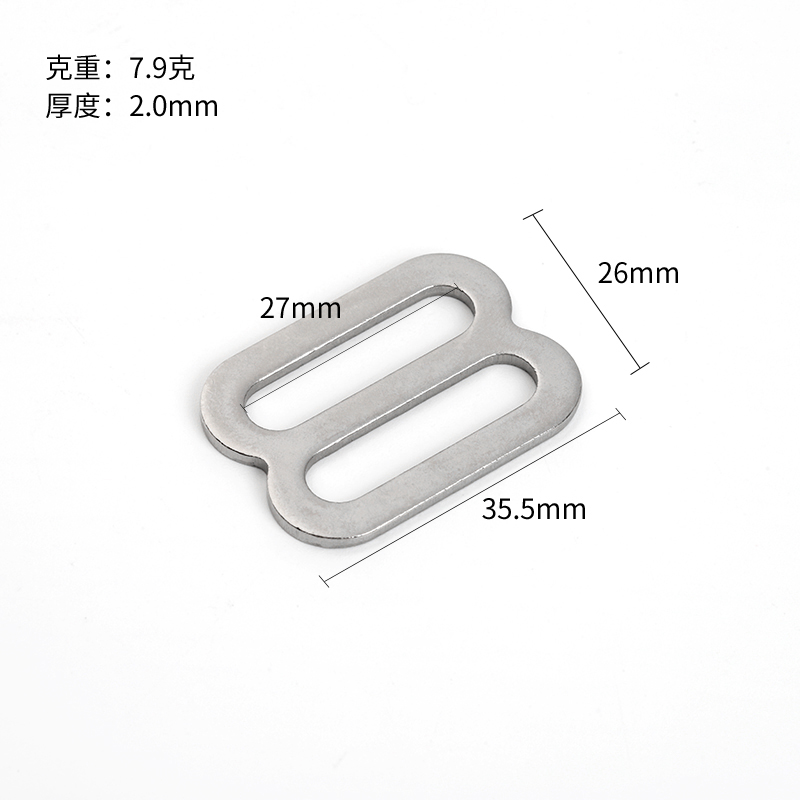

A – Double-Slot Slider
Overall dimensions: 35.5 × 26 mm
Slot length: 27 mm
Thickness: 2.0 mm
Approximate unit weight: 7.9 g

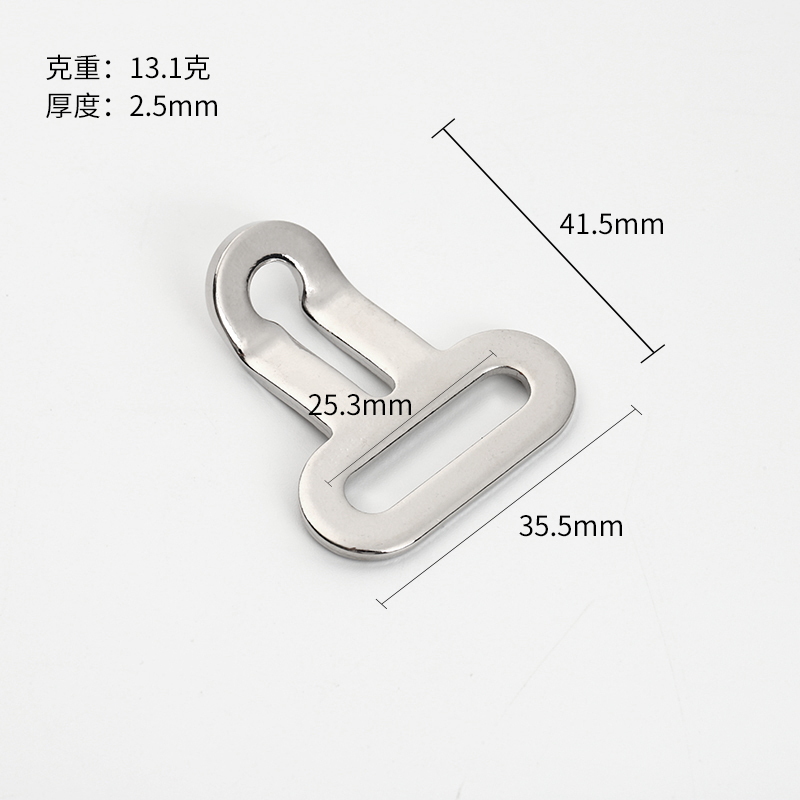

B – Slotted Hook
Overall dimensions: 41.5 × 35.5 mm
Strap opening: 25.3 mm
Thickness: 2.5 mm
Approximate unit weight: 13.1 g

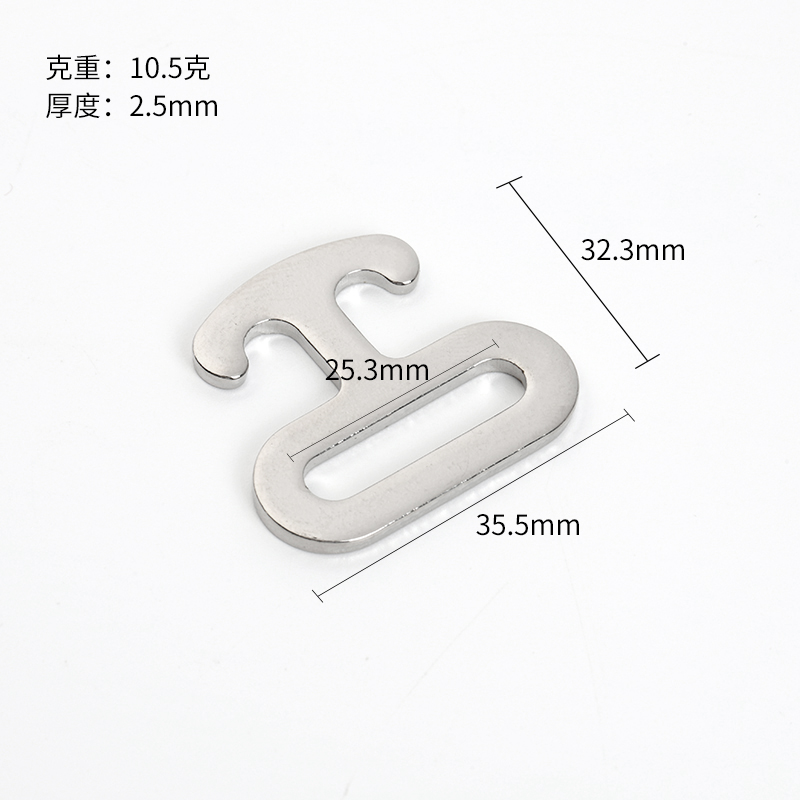

C – Double-Ended Hook
Overall dimensions: 35.5 × 32.3 mm
Strap opening: 25.3 mm
Thickness: 2.5 mm
Approximate unit weight: 10.5 g

Selection Guide

Choose the double-slot slider for compatible webbing-routing and adjustment structures. The slotted hook and double-ended hook provide different hooking directions and connection arrangements.

Confirm the webbing width and thickness before ordering. Sample fitting is recommended because webbing thickness and the finished-product structure may affect compatibility.

Important Notes

Dimensions are based on manual measurements and may have minor tolerances. Unit weights are approximate. Material grade, surface treatment and rated load have not been specified. Do not determine load-bearing suitability from appearance alone.

Technical Resources

• Metal Hardware Size Guide — check opening size, webbing width and fit before ordering.
• Metal Hardware Surface Finish Guide — compare common finishes and appearance considerations.
• Metal Hardware Quality Inspection Checklist — review dimensional, functional and surface checks.
• Custom Metal Hardware Manufacturing Process — learn how custom dimensions and finishes are evaluated.

Need a sample or custom specification? Contact Jinxing Hardware with the required style, dimensions, finish and intended application.
