Metal Connecting Rings – D-Ring, Triangle & Rectangle Styles

Metal Connecting Rings in Four Styles

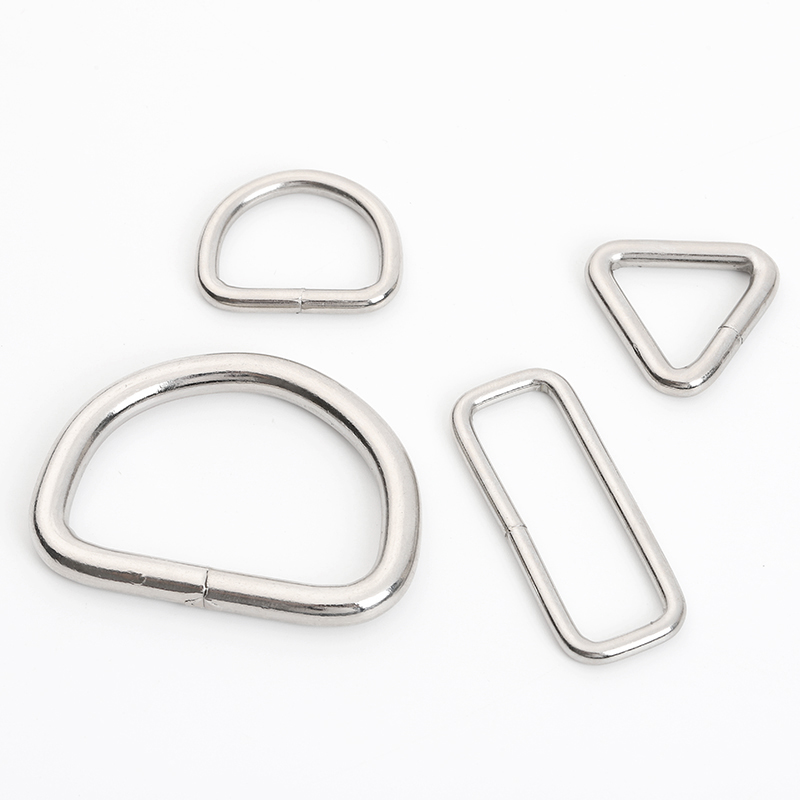

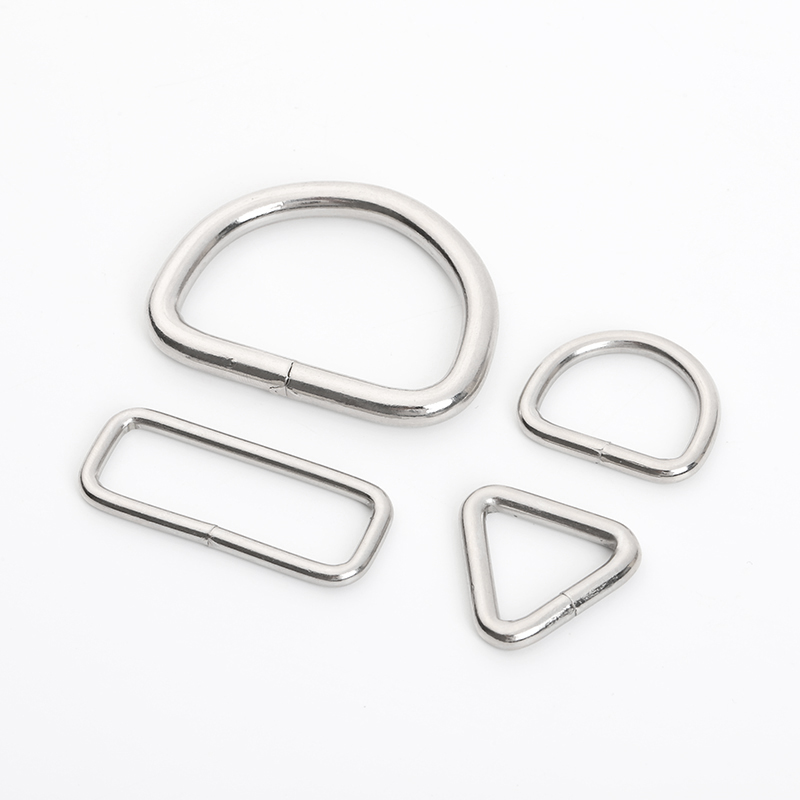

This product series includes four metal connecting ring configurations for different webbing, strap and hardware connection requirements. Available styles include a small D-ring, triangle ring, rectangle ring and large D-ring.

Available Options

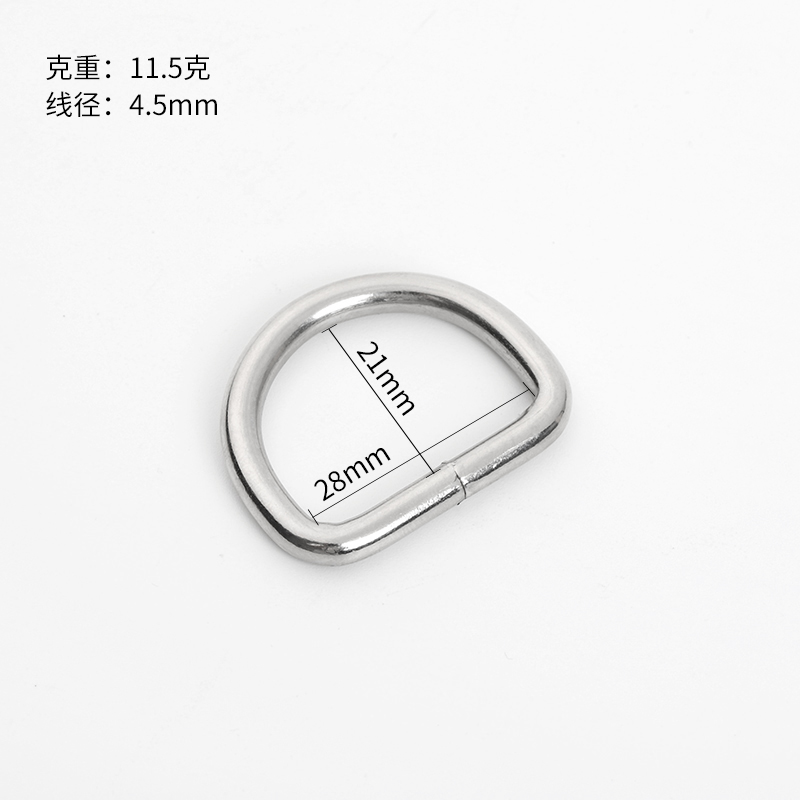

A – Small D-Ring
Inner size: 28 × 21 mm
Wire diameter: 4.5 mm
Approximate unit weight: 11.5 g

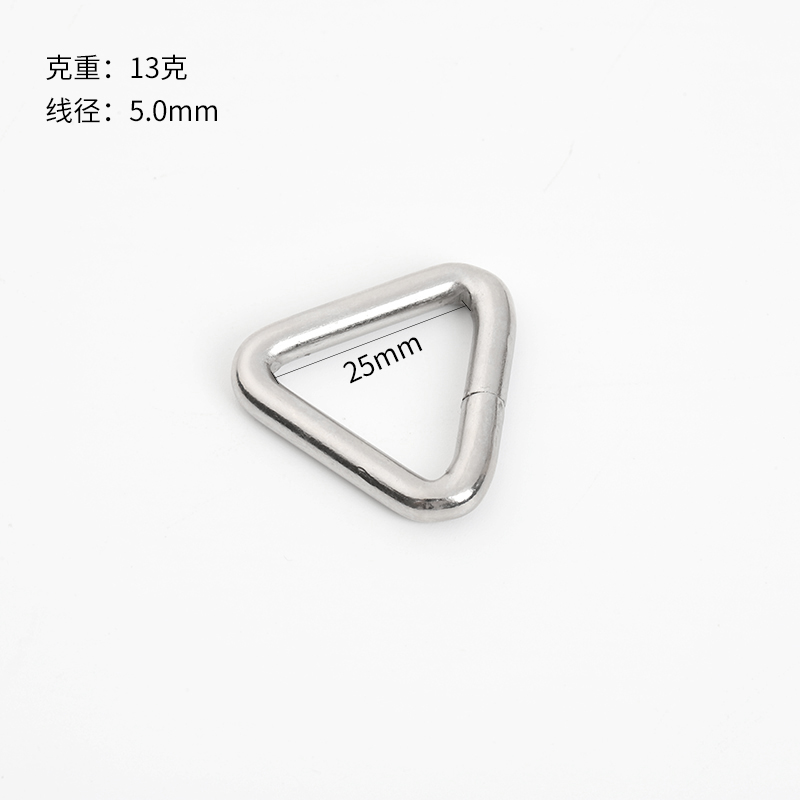

B – Triangle Ring
Inner size: 25 mm
Wire diameter: 5.0 mm
Approximate unit weight: 13 g

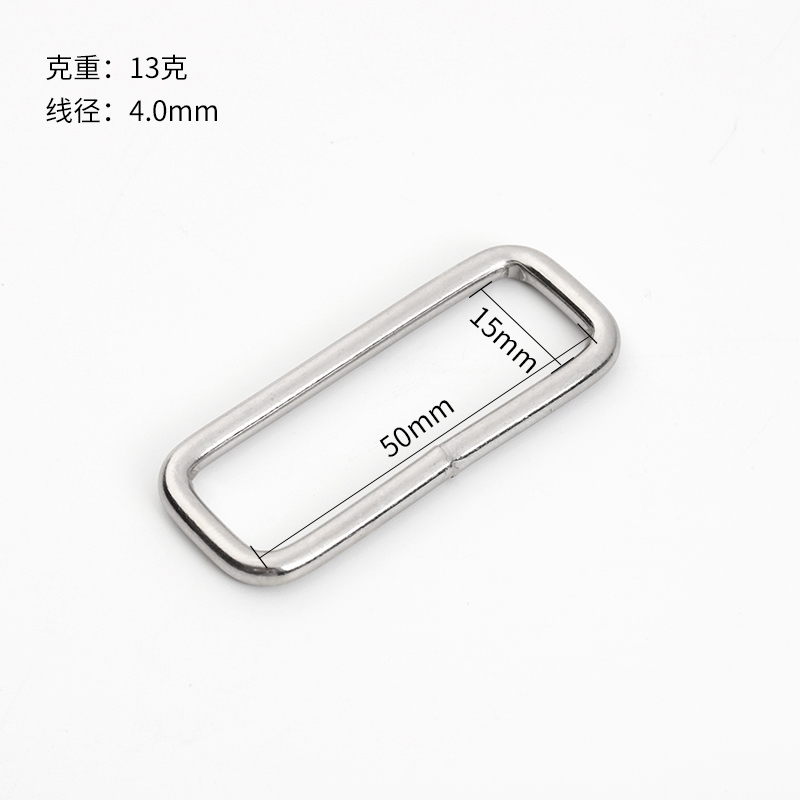

C – Rectangle Ring
Inner size: 50 × 15 mm
Wire diameter: 4.0 mm
Approximate unit weight: 13 g

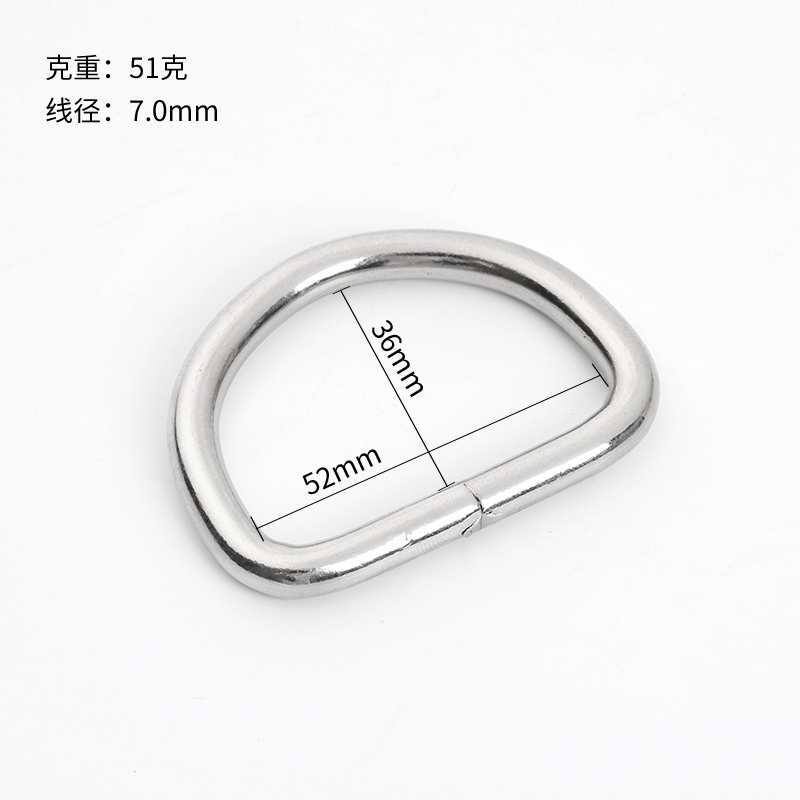

D – Large D-Ring
Inner size: 52 × 36 mm
Wire diameter: 7.0 mm
Approximate unit weight: 51 g

Style Selection

The D-ring design provides a straight side for positioning webbing, while the curved section provides a connecting area. The triangle ring concentrates the connection toward one end. The rectangle ring is suitable for straight webbing arrangements, and the large D-ring provides a wider internal opening.

Ordering Information

Please confirm the required style, inner dimensions, wire diameter and order quantity before placing a bulk order. We recommend checking a sample with your webbing or finished product before volume production.

Important Notes

Dimensions shown are based on manual measurements and may have minor tolerances. Unit weights are approximate. Load-bearing performance has not been specified and should be tested according to the intended finished-product application.
