Black Double-Slot Webbing Sliders – 27mm, 37mm & 50mm

Description

Black Double-Slot Webbing SlidersBlack Double-Slot Webbing Sliders

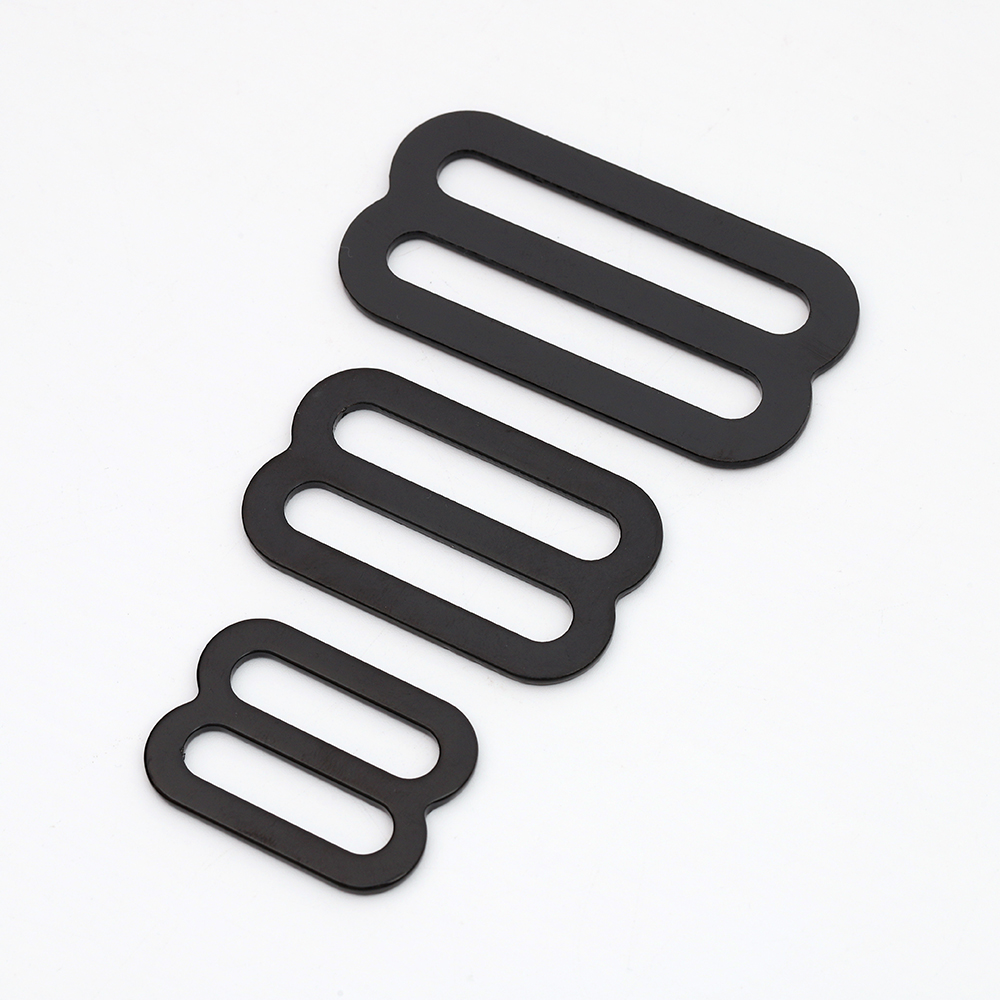

These black double-slot webbing sliders are available in three sizes for compatible straps, bags and webbing assemblies. The parallel-slot structure allows webbing to be routed according to the intended adjustment arrangement.

Available Sizes

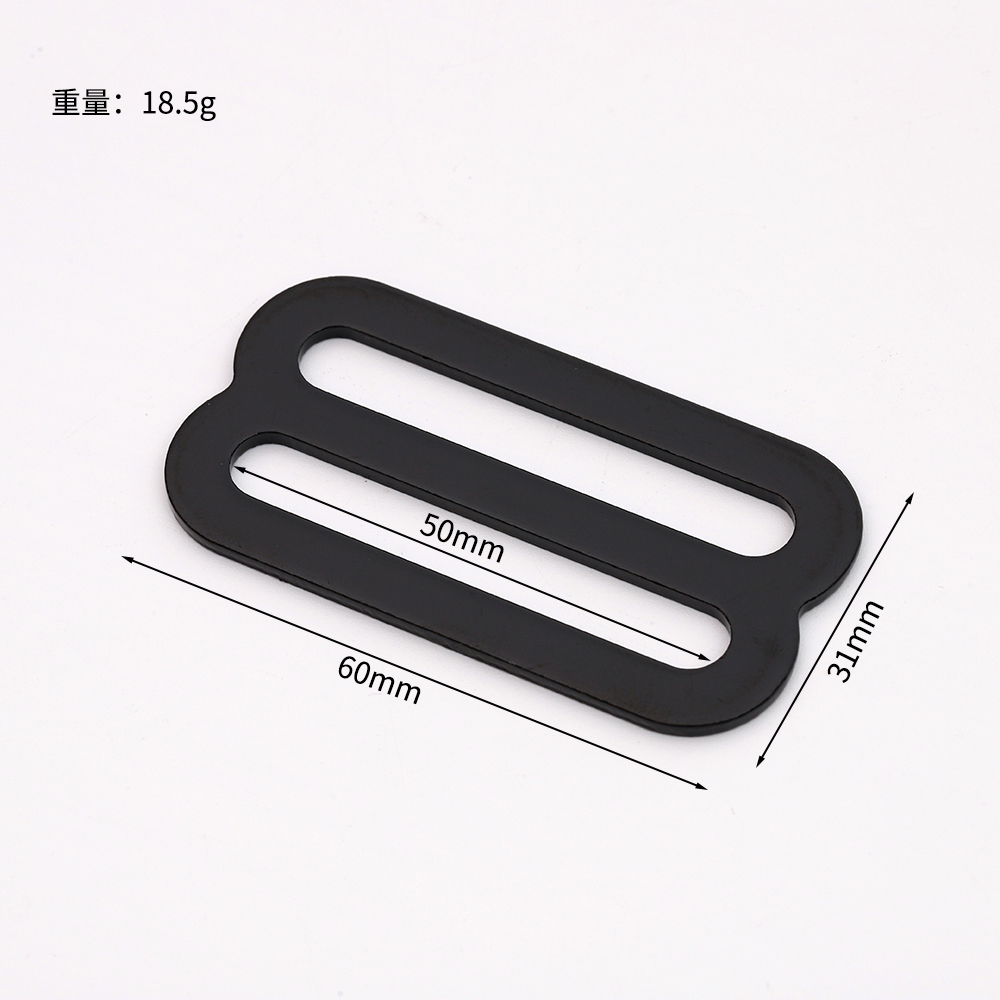

50mm
Overall dimensions: 60 × 31 mm
Slot length: 50 mm
Approximate unit weight: 18.5 g

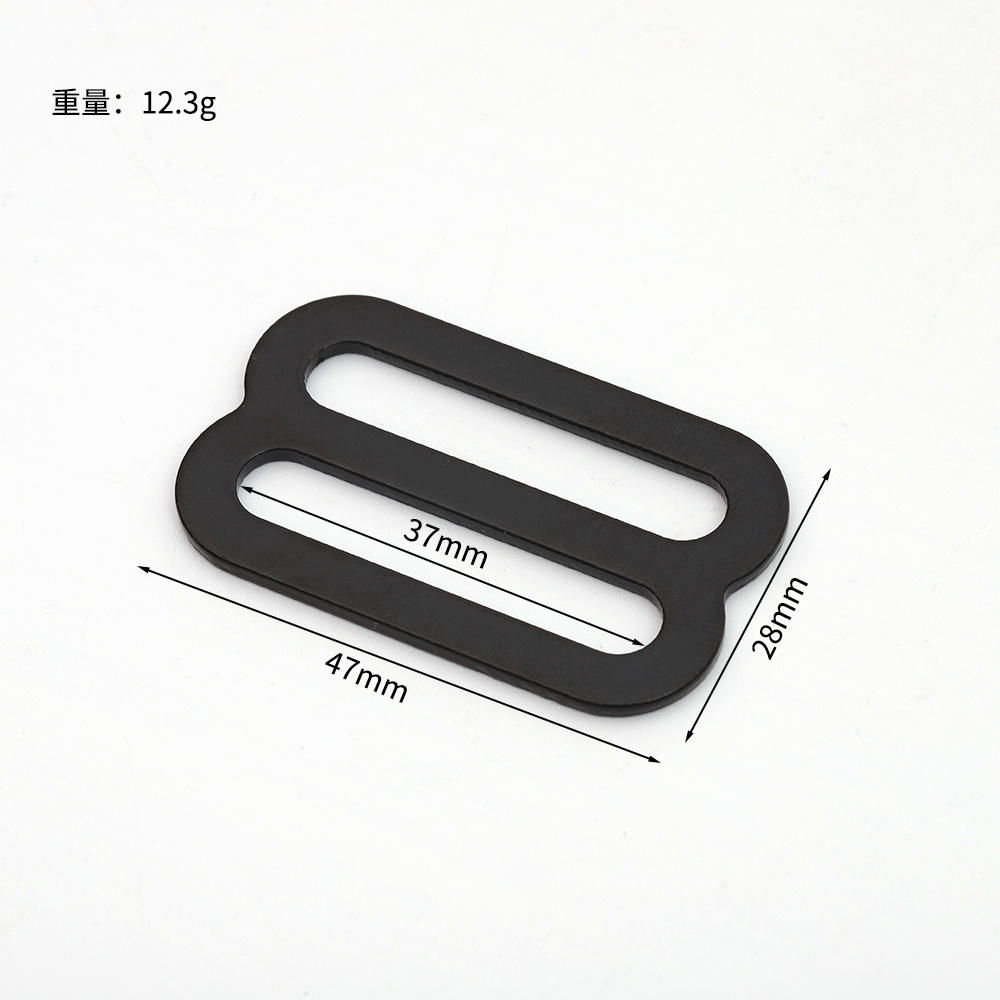

37mm
Overall dimensions: 47 × 28 mm
Slot length: 37 mm
Approximate unit weight: 12.3 g

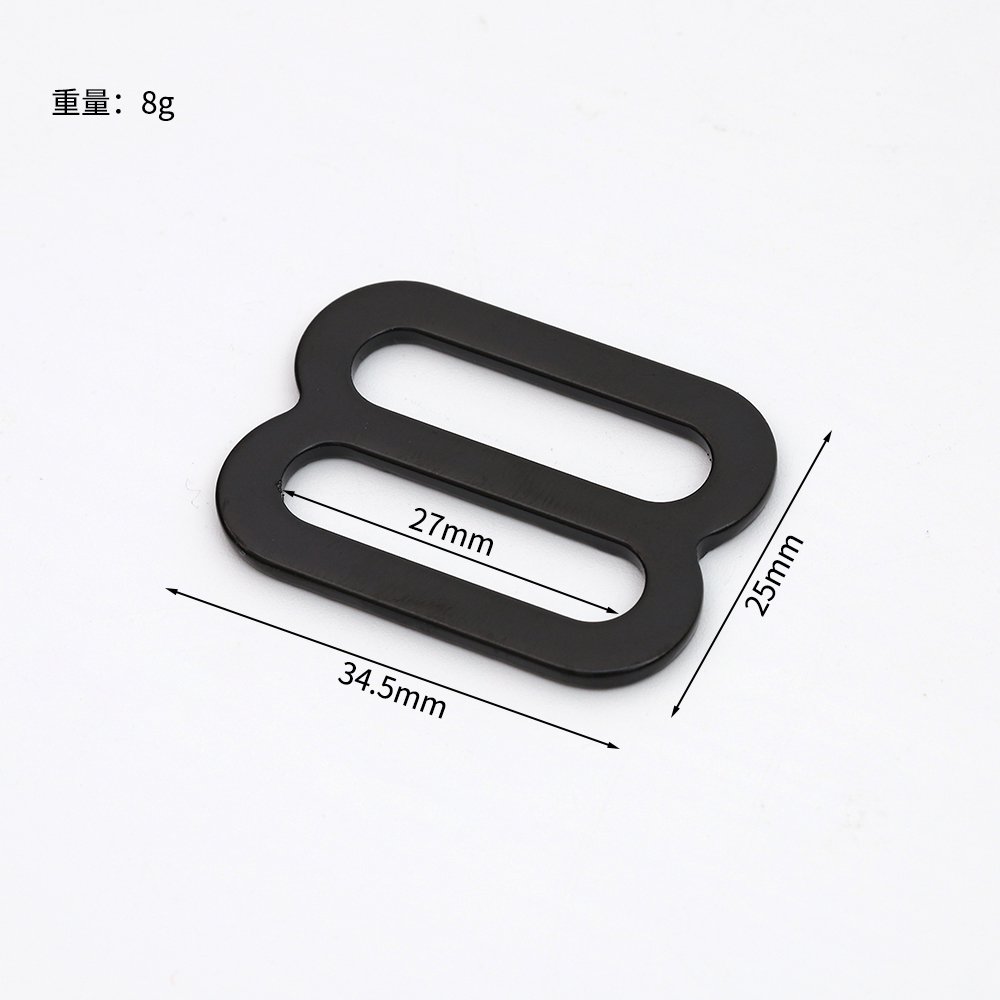

27mm
Overall dimensions: 34.5 × 25 mm
Slot length: 27 mm
Approximate unit weight: 8 g

Selection Guide

Select the slider according to the width and thickness of the intended webbing. Confirm that the webbing can pass through both slots and provide the required adjustment movement and friction.

Sample fitting is recommended before bulk ordering because webbing thickness, material and routing method may affect compatibility.

Important Notes

Dimensions and unit weights are based on the information shown in the product images. Minor measurement tolerances may occur. Material grade, coating process and rated load have not been specified. Load-bearing suitability must be tested with the complete finished-product structure.

Technical Resources

• Metal Hardware Size Guide — check opening size, webbing width and fit before ordering.
• Metal Hardware Surface Finish Guide — compare common finishes and appearance considerations.
• Metal Hardware Quality Inspection Checklist — review dimensional, functional and surface checks.
• Custom Metal Hardware Manufacturing Process — learn how custom dimensions and finishes are evaluated.

Need a sample or custom specification? Contact Jinxing Hardware with the required style, dimensions, finish and intended application.
