Flat Metal Roller Pin Buckles – 21mm to 28mm

Description

Flat Metal Roller Pin Buckles

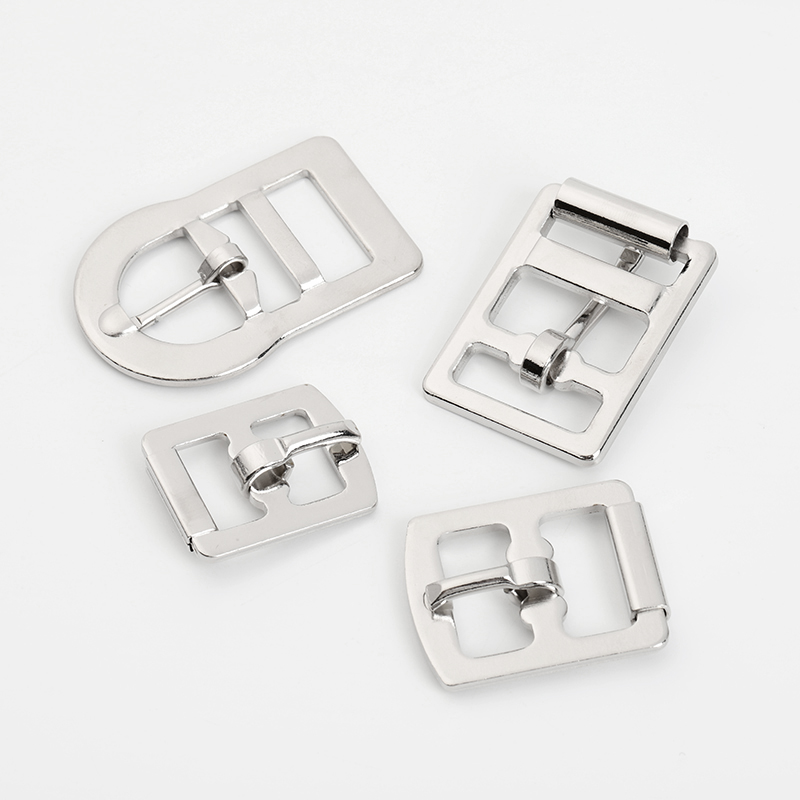

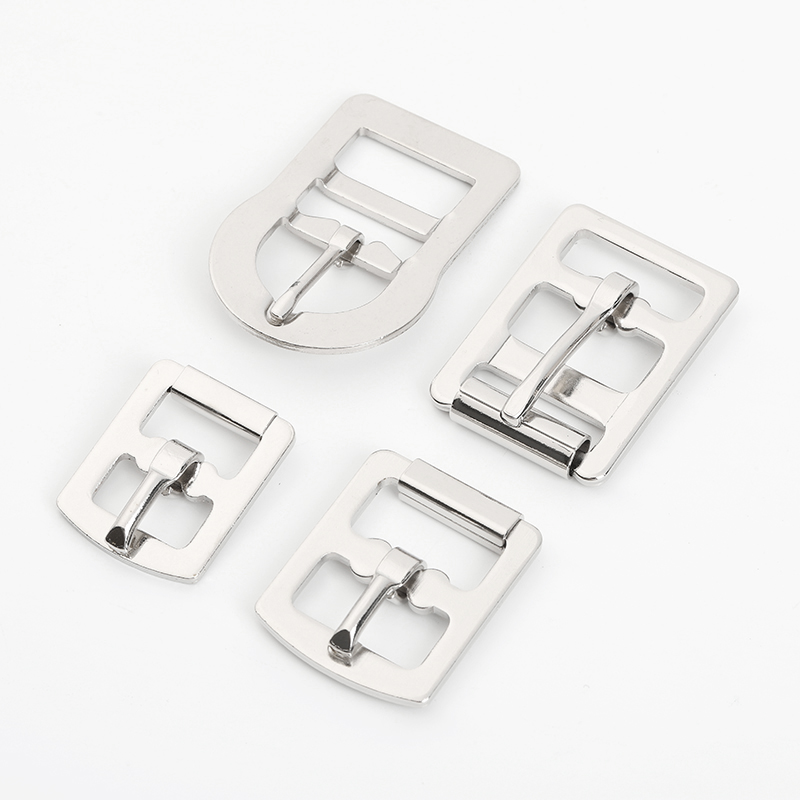

This series includes four flat-frame roller pin buckle styles for straps and webbing. Each option has a different frame shape, strap opening, thickness and overall size.

Available Options

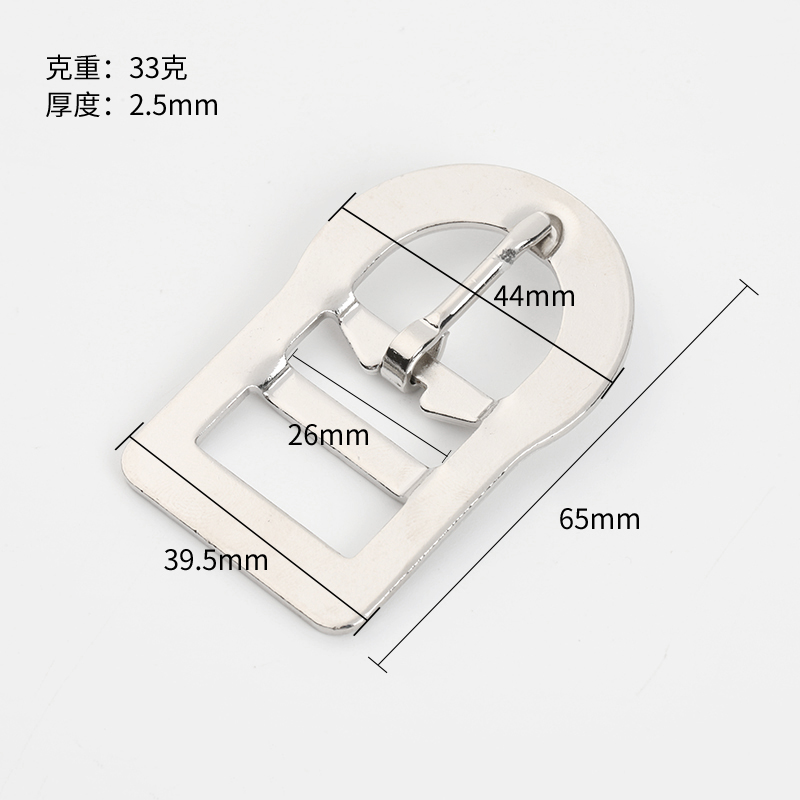

A – 26mm Roller Pin Buckle
Overall dimensions: 65 × 39.5 mm
Strap opening: 26 mm
Thickness: 2.5 mm
Approximate unit weight: 33 g

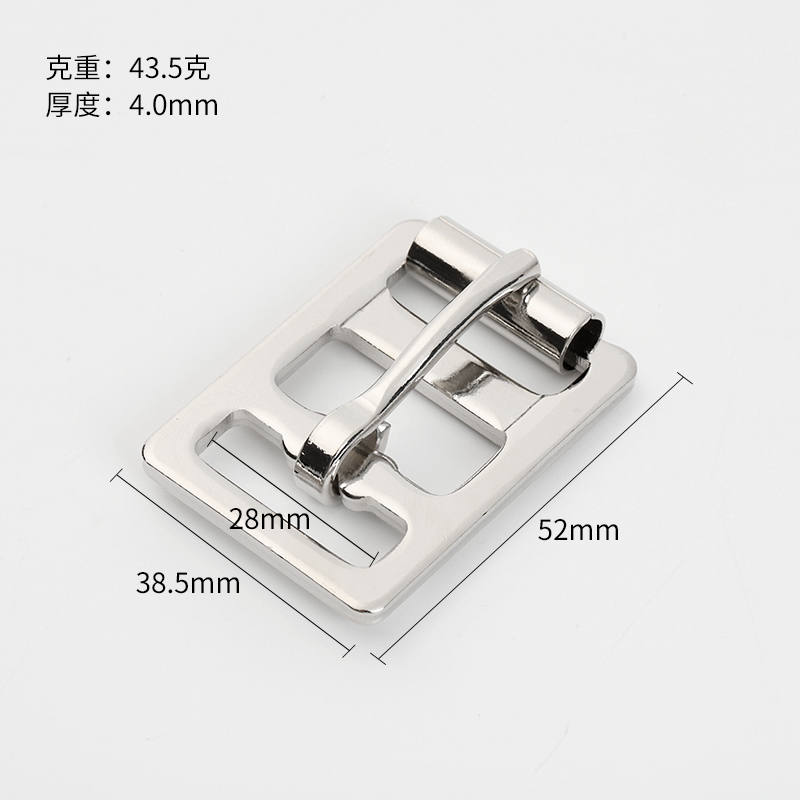

B – 28mm Roller Pin Buckle
Overall dimensions: 52 × 38.5 mm
Strap opening: 28 mm
Thickness: 4.0 mm
Approximate unit weight: 43.5 g

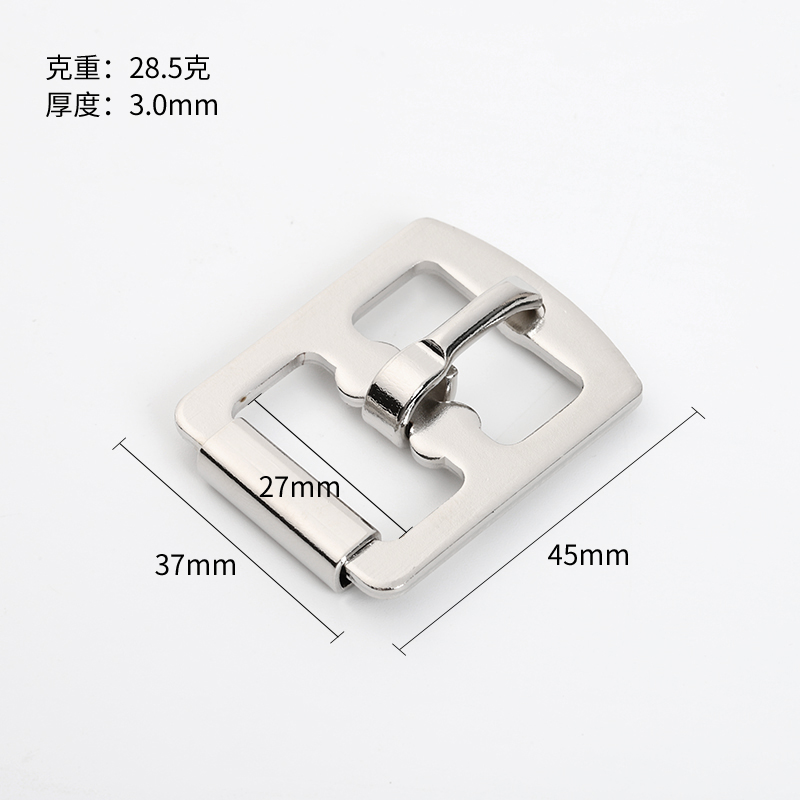

C – 27mm Roller Pin Buckle
Overall dimensions: 45 × 37 mm
Strap opening: 27 mm
Thickness: 3.0 mm
Approximate unit weight: 28.5 g

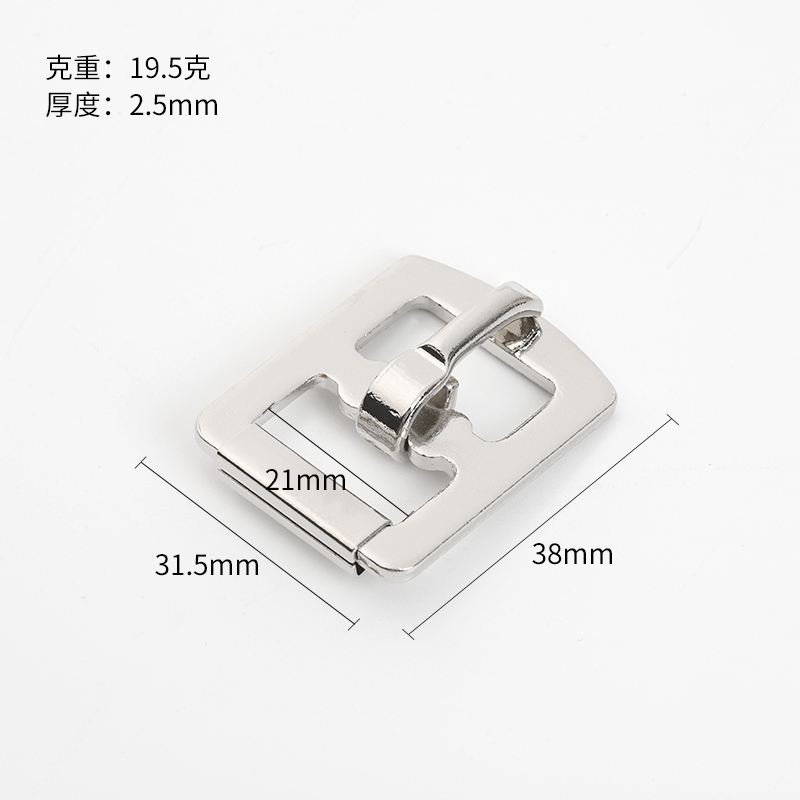

D – 21mm Roller Pin Buckle
Overall dimensions: 38 × 31.5 mm
Strap opening: 21 mm
Thickness: 2.5 mm
Approximate unit weight: 19.5 g

Selection Guide

Select the buckle according to the width and thickness of your strap or webbing. The four options differ in frame design and installation space, so the complete product dimensions should also be checked.

Before bulk ordering, test a sample with the intended strap and finished-product structure.

Important Notes

Dimensions are based on manual measurements and may have minor tolerances. Unit weights are approximate. Rated load data has not been provided. Load-bearing suitability should be verified through testing in the intended finished-product application.

Technical Resources

• Metal Hardware Size Guide — check opening size, webbing width and fit before ordering.
• Metal Hardware Surface Finish Guide — compare common finishes and appearance considerations.
• Metal Hardware Quality Inspection Checklist — review dimensional, functional and surface checks.
• Custom Metal Hardware Manufacturing Process — learn how custom dimensions and finishes are evaluated.

Need a sample or custom specification? Contact Jinxing Hardware with the required style, dimensions, finish and intended application.
