Roller Pin Buckles for Webbing – 5 Rounded Metal Styles

Description

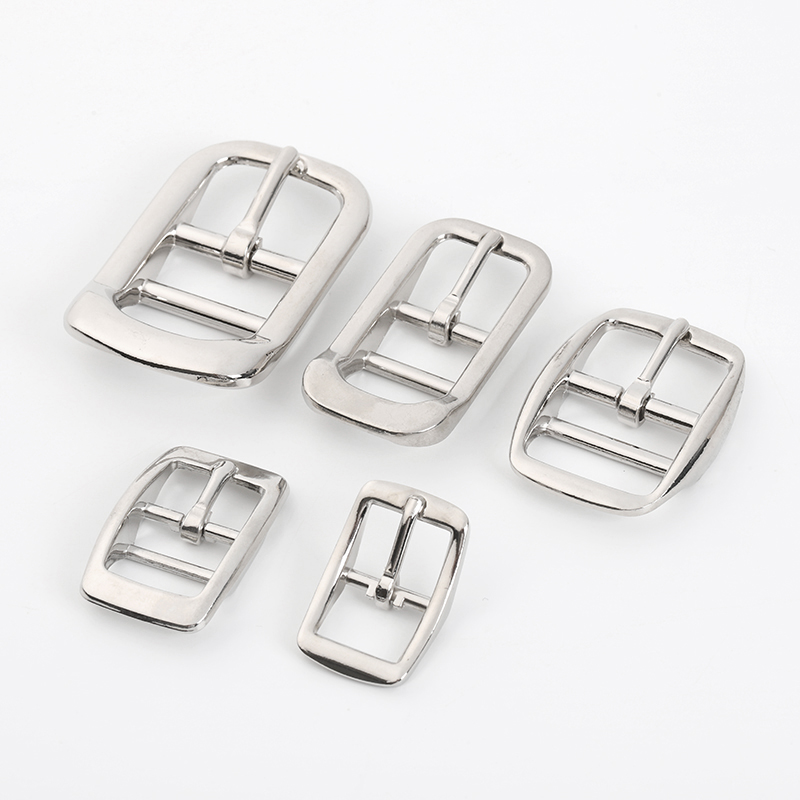

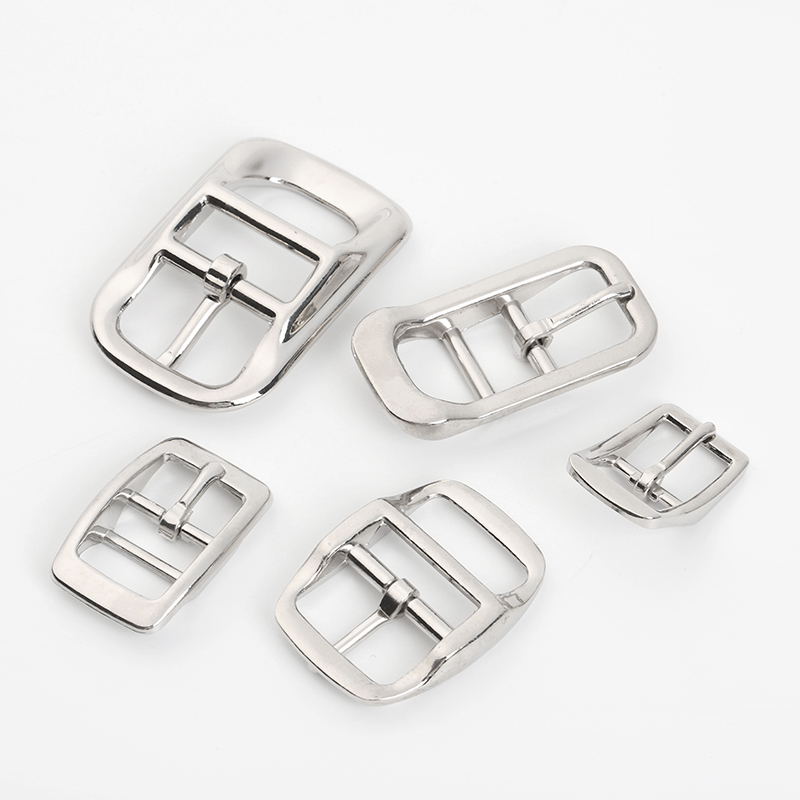

These roller pin buckles for webbing are available in five rounded metal frame styles. The options differ in strap-opening width, overall dimensions, frame proportions and approximate unit weight.

This series includes five roller pin buckle styles for straps and webbing. The options differ in strap-opening width, frame shape, overall dimensions and unit weight.

Available Options

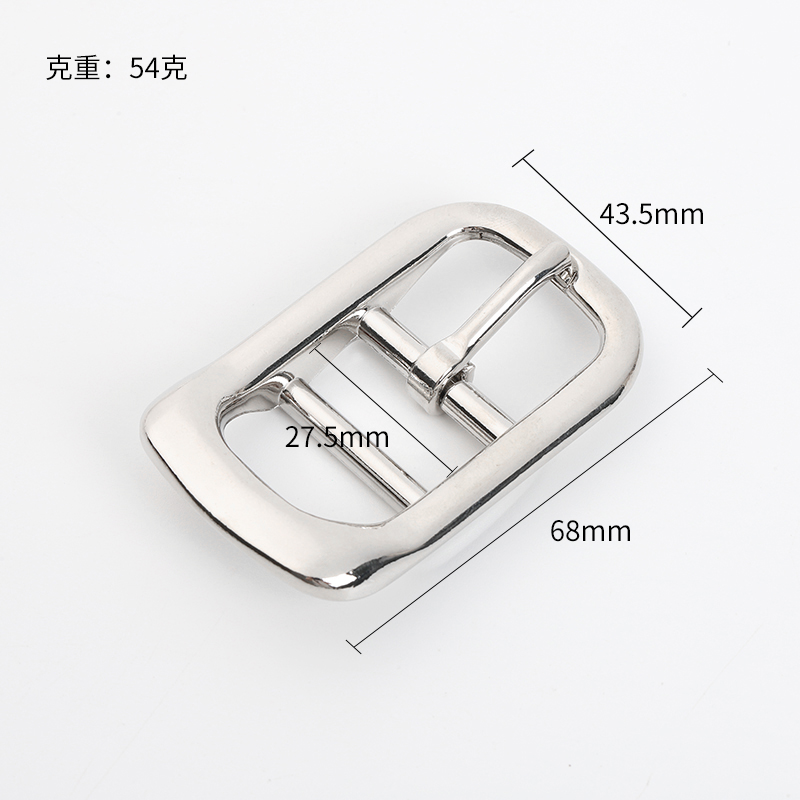

A – 27.5mm Large
Overall dimensions: 68 × 43.5 mm
Strap opening: 27.5 mm
Approximate unit weight: 54 g

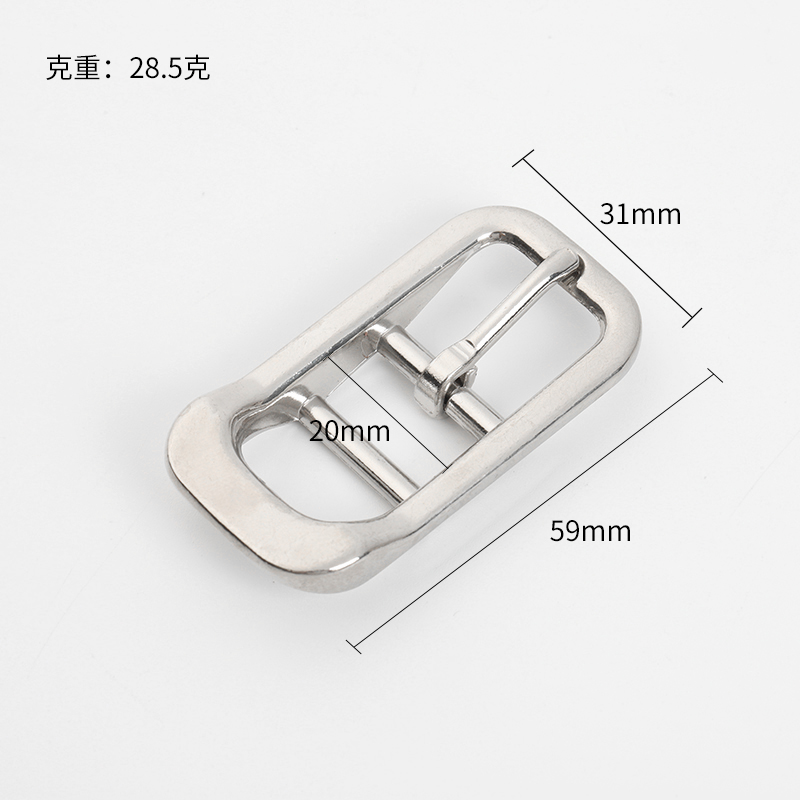

B – 20mm Long
Overall dimensions: 59 × 31 mm
Strap opening: 20 mm
Approximate unit weight: 28.5 g

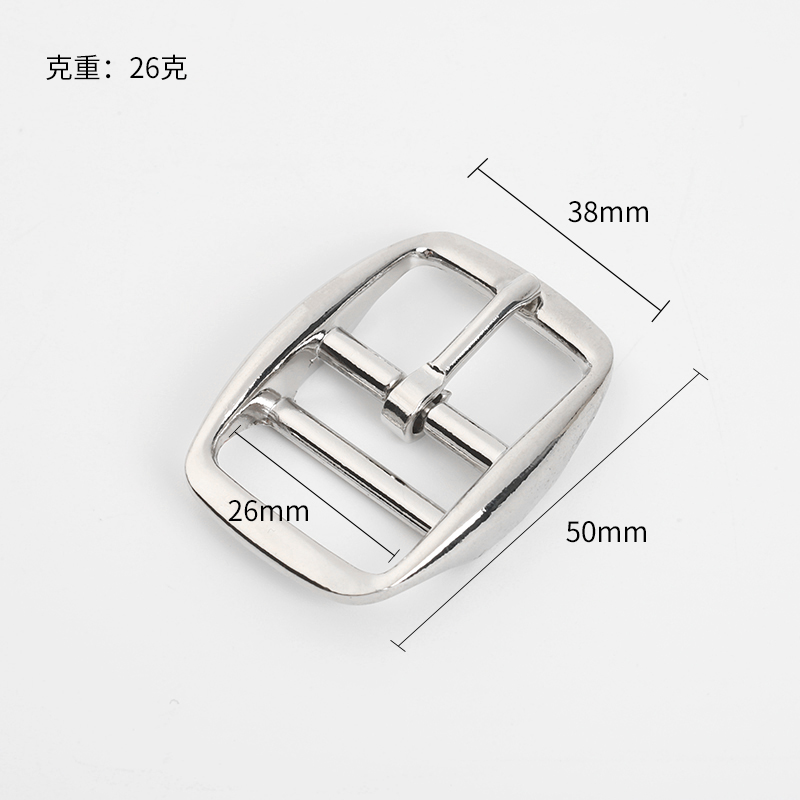

C – 26mm
Overall dimensions: 50 × 38 mm
Strap opening: 26 mm
Approximate unit weight: 26 g

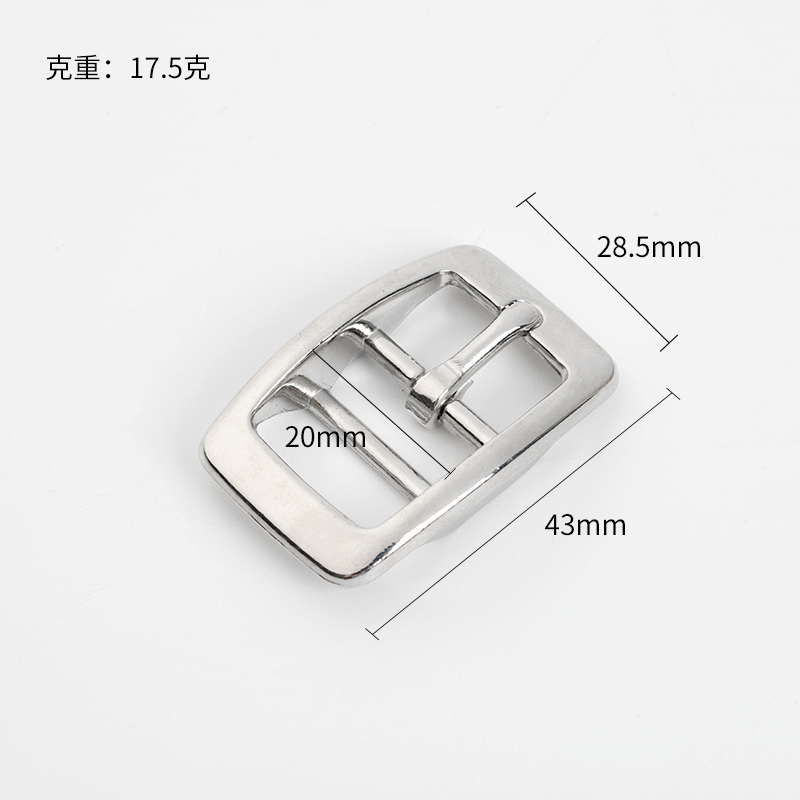

D – 20mm Compact
Overall dimensions: 43 × 28.5 mm
Strap opening: 20 mm
Approximate unit weight: 17.5 g

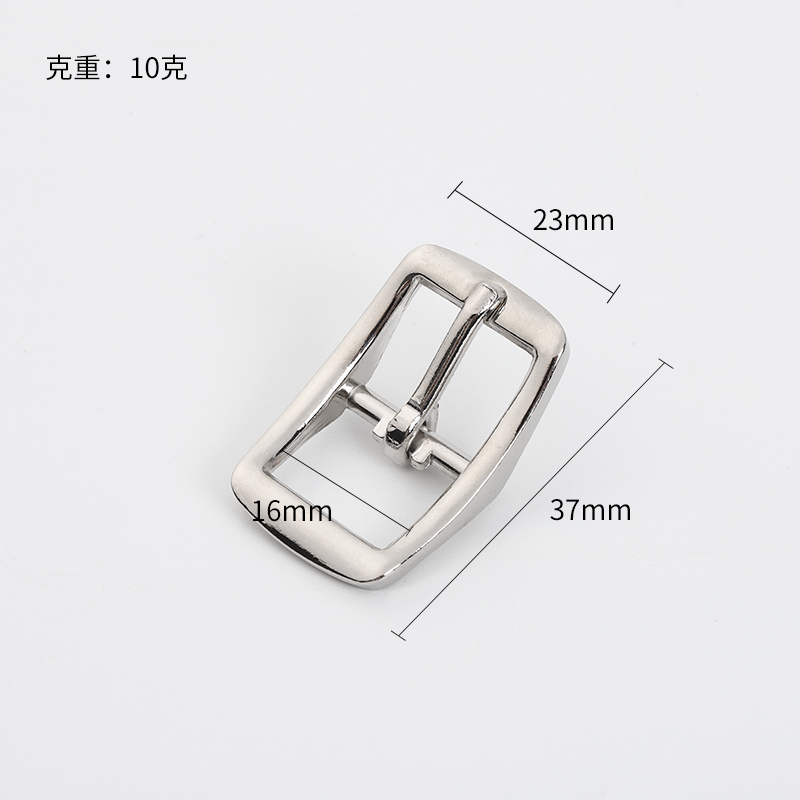

E – 16mm Small
Overall dimensions: 37 × 23 mm
Strap opening: 16 mm
Approximate unit weight: 10 g

Selection Guide

Select the buckle according to the width and thickness of your strap or webbing. Options B and D both have a 20 mm strap opening, but their overall dimensions, frame proportions and unit weights are different.

Check the complete product dimensions and test a sample with your intended strap before bulk production.

Important Notes

Dimensions are based on manual measurements and may have minor tolerances. Unit weights are approximate. Material grade, surface treatment and rated load have not been specified. Load-bearing suitability should be tested according to the intended finished-product application.

Technical Resources

• Metal Hardware Size Guide — check opening size, webbing width and fit before ordering.
• Metal Hardware Surface Finish Guide — compare common finishes and appearance considerations.
• Metal Hardware Quality Inspection Checklist — review dimensional, functional and surface checks.
• Custom Metal Hardware Manufacturing Process — learn how custom dimensions and finishes are evaluated.

Need a sample or custom specification? Contact Jinxing Hardware with the required style, dimensions, finish and intended application.
