Description

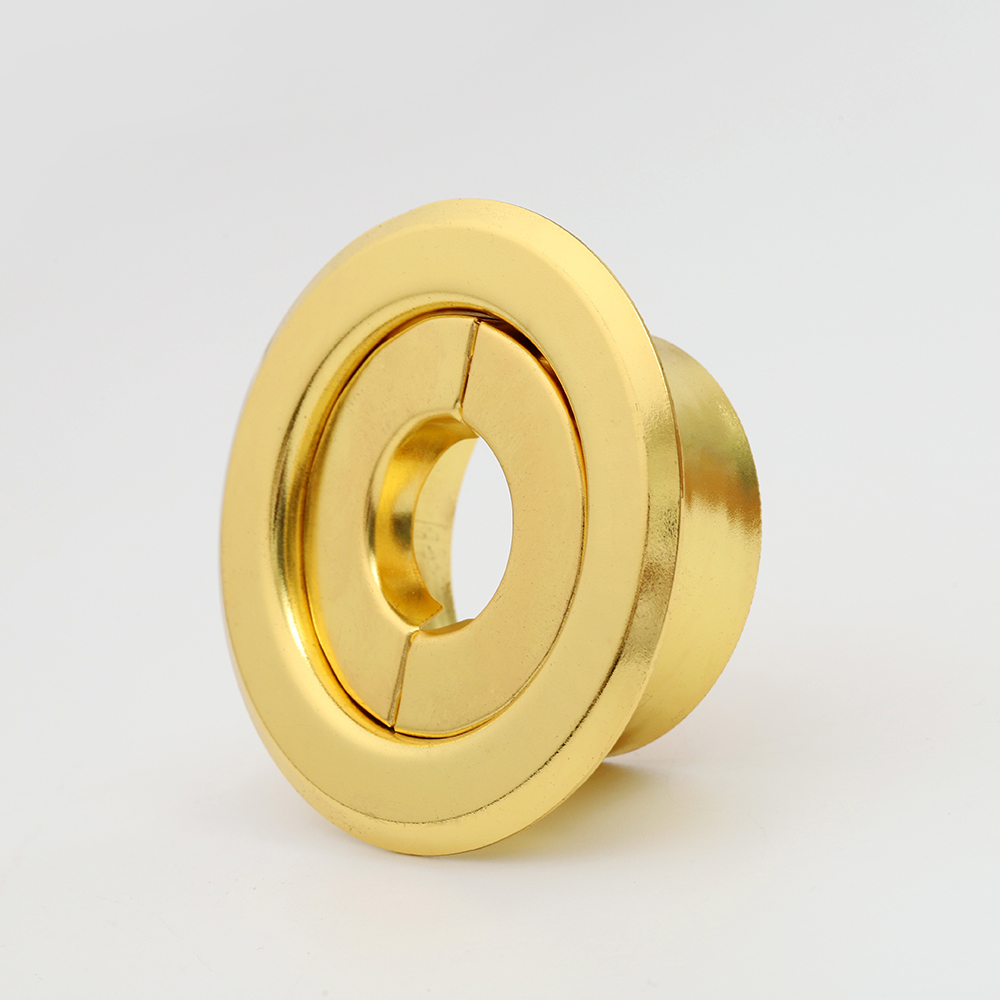

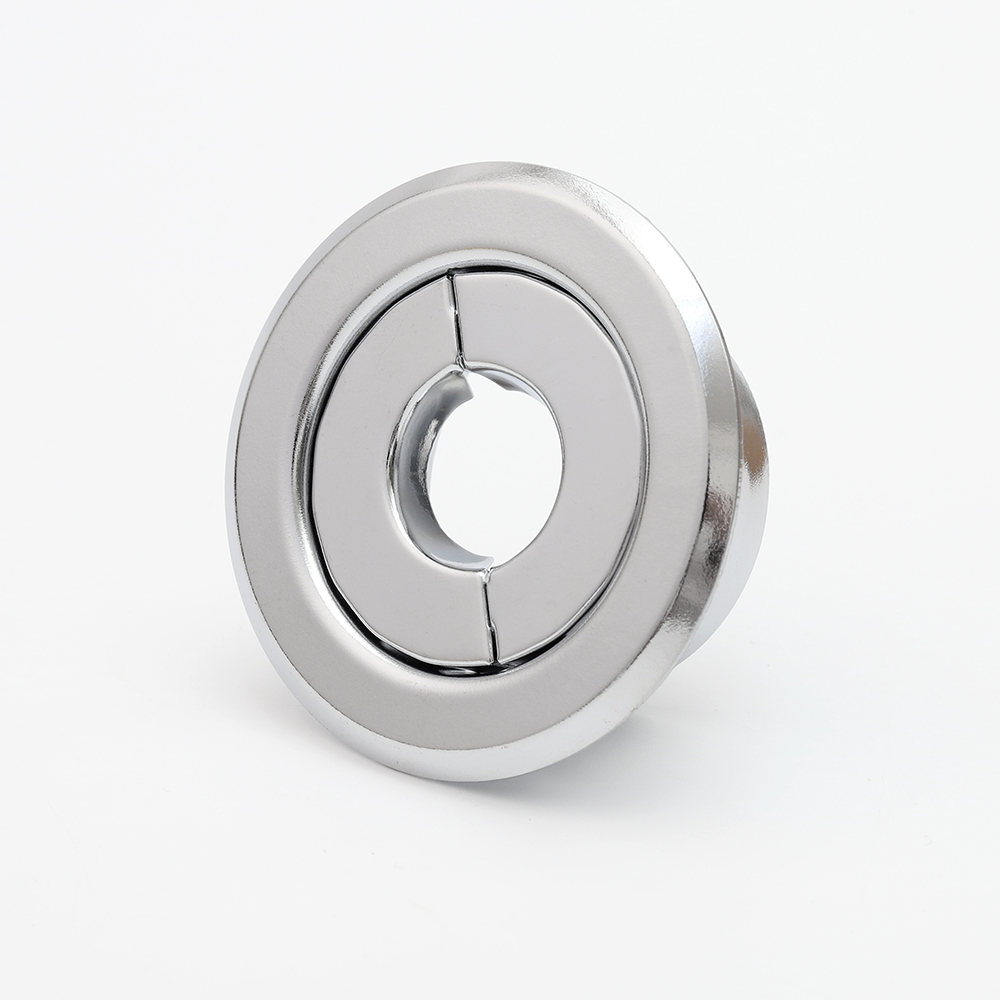

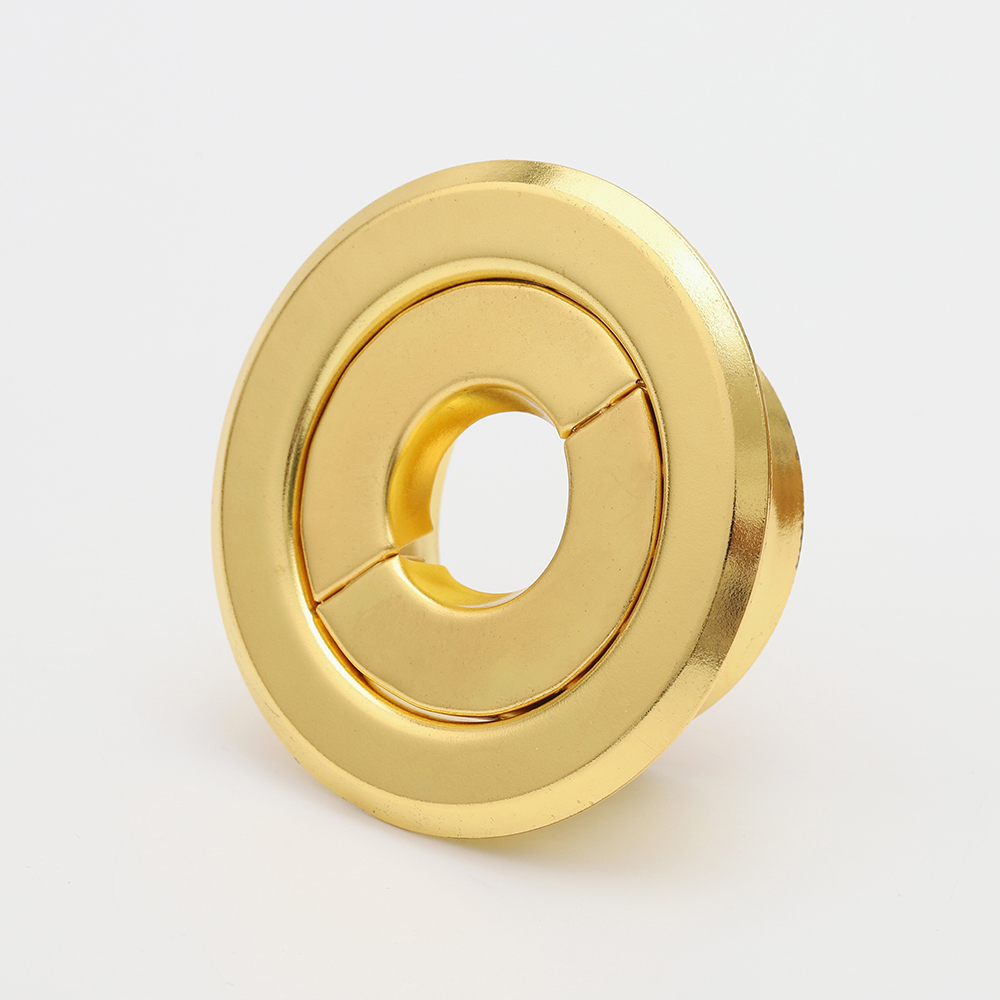

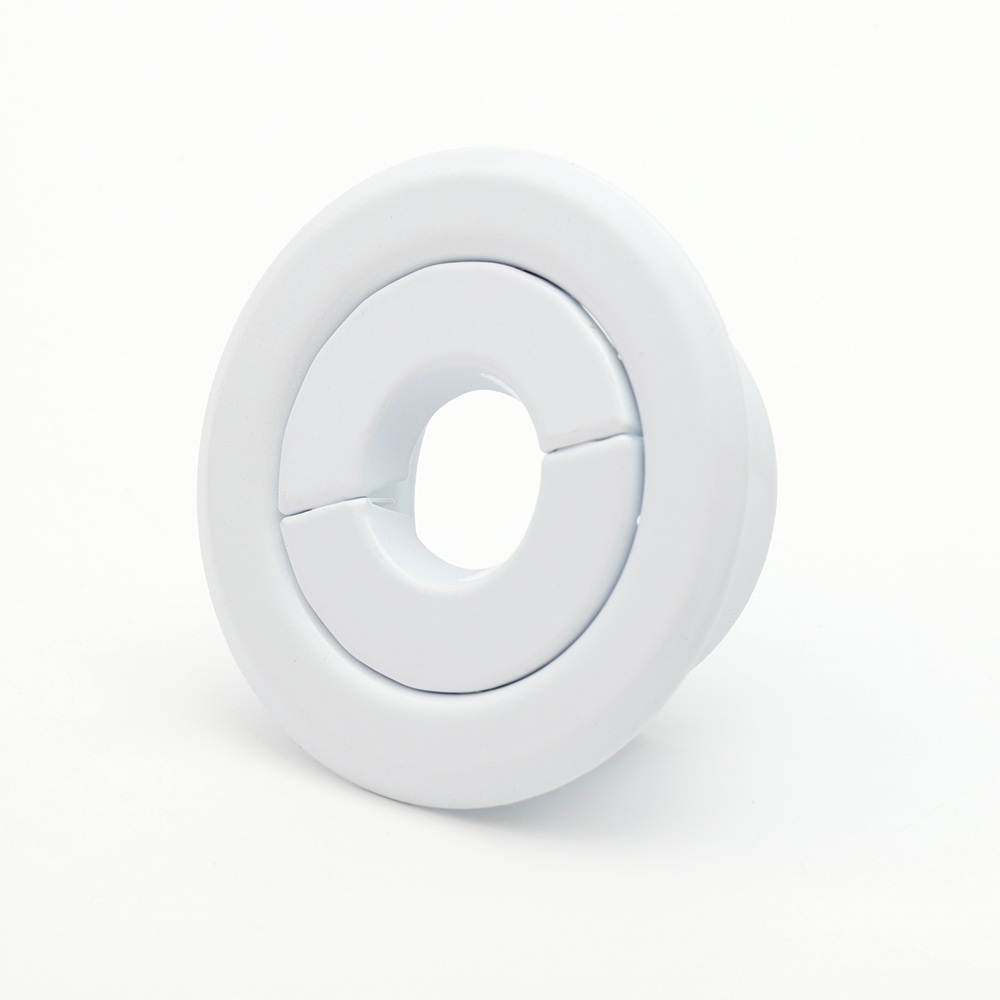

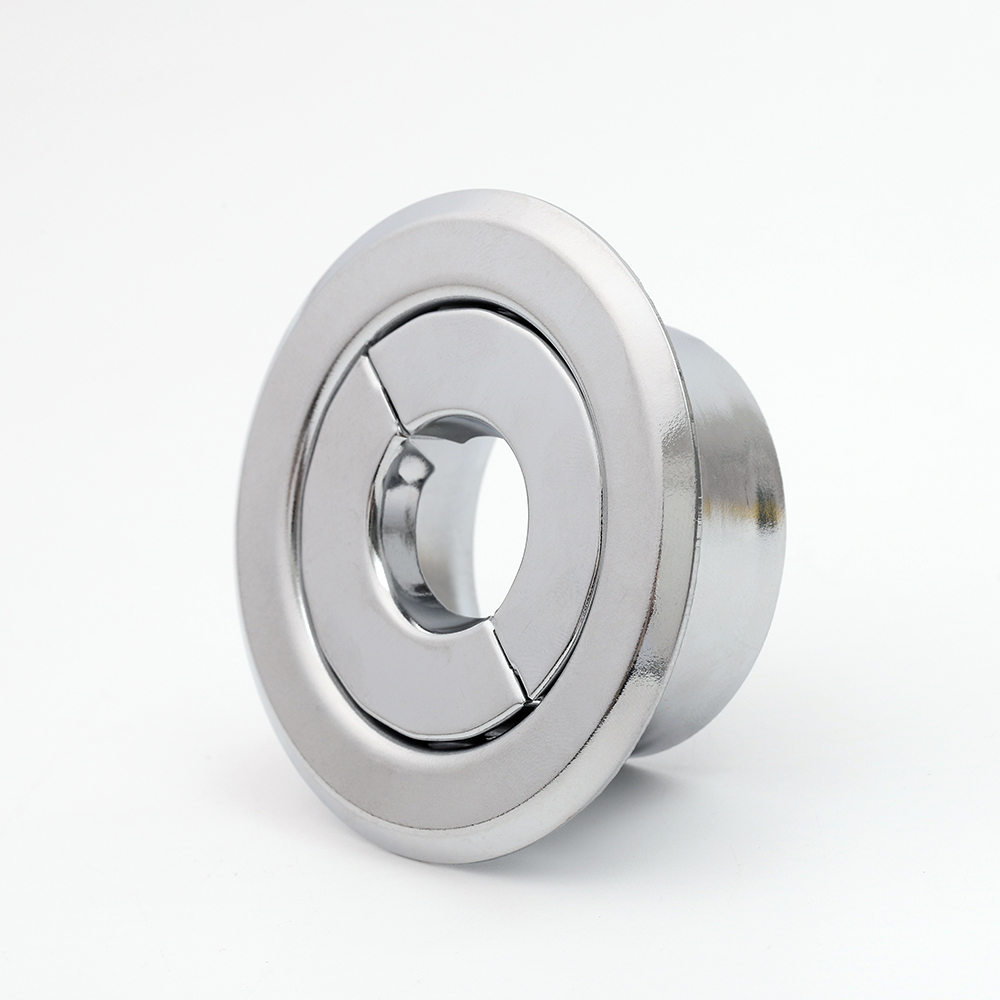

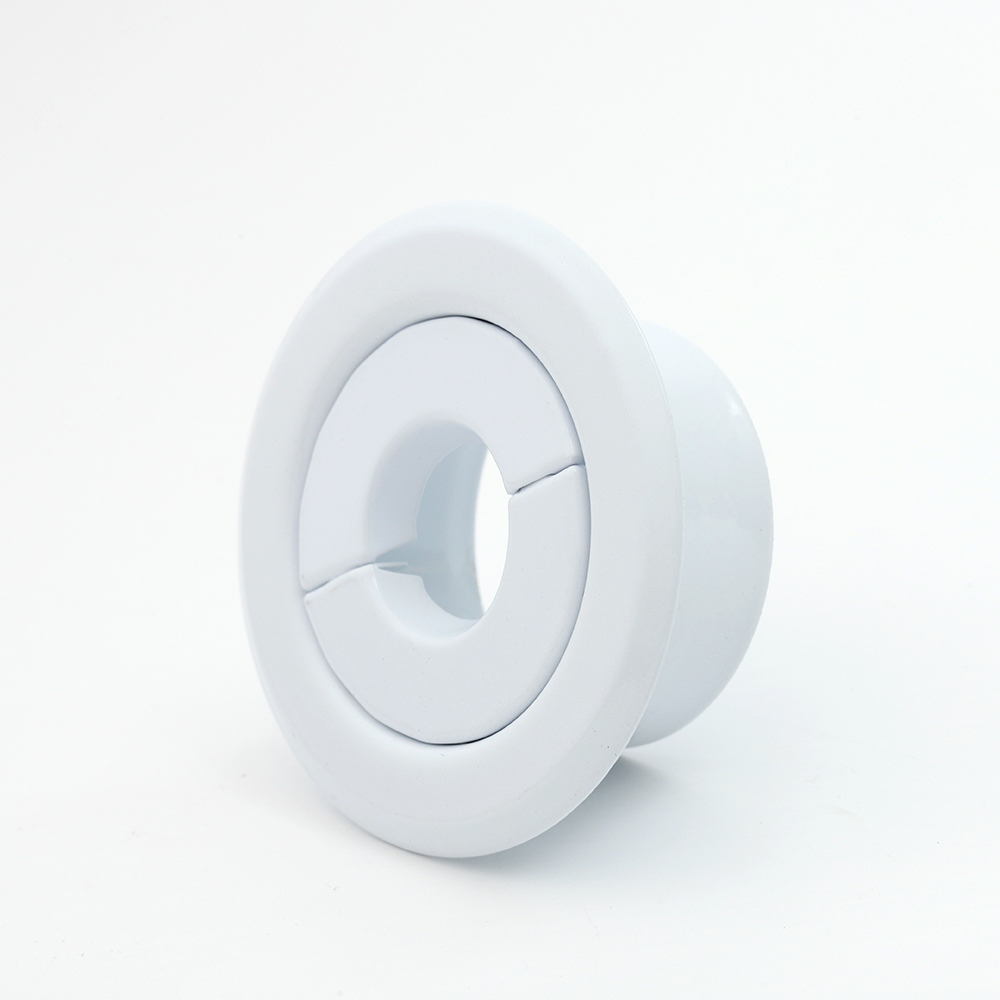

This round cable grommet cover provides two cable-routing configurations in one compact design. Keep the removable split insert installed to guide cables through the 24 mm center opening, or remove the insert to create a larger 47.5 mm pass-through.
Available in gold, silver and white for matching desks, cabinets, counters and equipment panels.
Round Cable Grommet Cover Features
- 74 mm outer flange diameter
- 47.5 mm large pass-through opening
- Removable split inner insert
- 24 mm center cable opening with the insert installed
- Two cable-routing configurations
- Available in gold, silver and white
- Suitable for desks, cabinets, counters and equipment panels
Product Specifications
| Outer Diameter | 74 mm |
|---|---|
| Large Opening | 47.5 mm |
| Removable Insert Diameter | 47.5 mm |
| Center Cable Opening | 24 mm |
| Weight | 40 g per piece |
| Available Colors | Gold, Silver and White |
Two Cable-Routing Options
For smaller cable bundles, keep the split inner insert installed and route the cables through the 24 mm center opening. For larger connectors or thicker cable bundles, remove the insert and use the 47.5 mm opening.
Installation Notes
Measure the actual panel cutout, panel thickness and installation clearance before ordering. Confirm that cable connectors can pass through the selected opening.
Important Information
Dimensions are measured manually and may have slight variations. Material composition, required panel thickness and exact mounting-hole tolerance have not been provided. Sample fitting is recommended before batch installation.
Technical Resources
- Metal Hardware Size Guide — check opening size, webbing width and fit before ordering.
- Metal Hardware Surface Finish Guide — compare common finishes and appearance considerations.
- Metal Hardware Quality Inspection Checklist — review dimensional, functional and surface checks.
- Custom Metal Hardware Manufacturing Process — learn how custom dimensions and finishes are evaluated.
Need a sample or custom specification? Contact Jinxing Hardware with the required style, dimensions, finish and intended application.
