Swivel Snap Hooks & Round Pin-Back Button – 4 Styles

Description

Four Hardware Styles for Different Attachment Structures

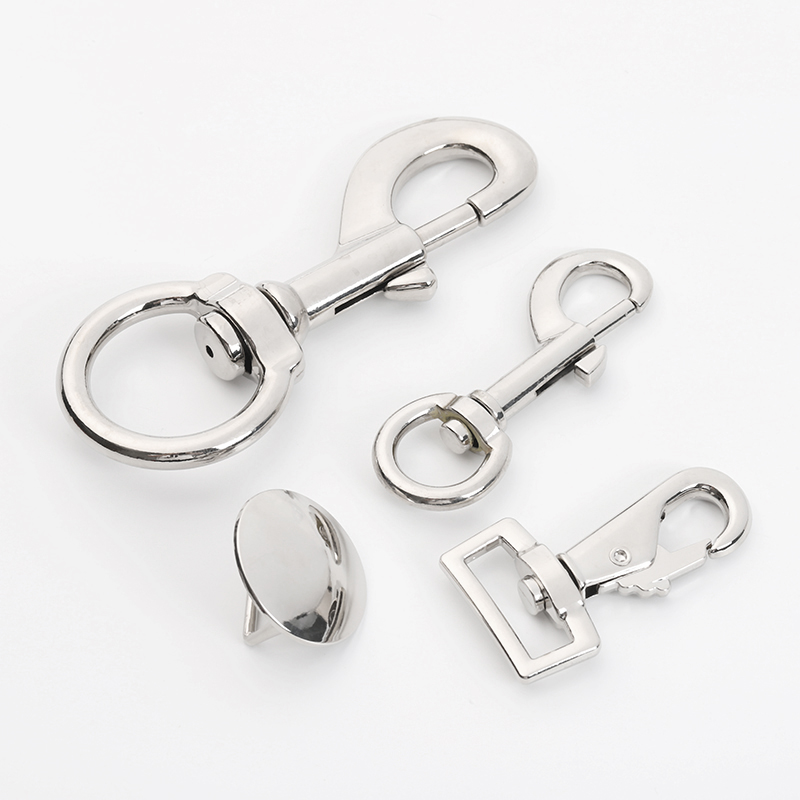

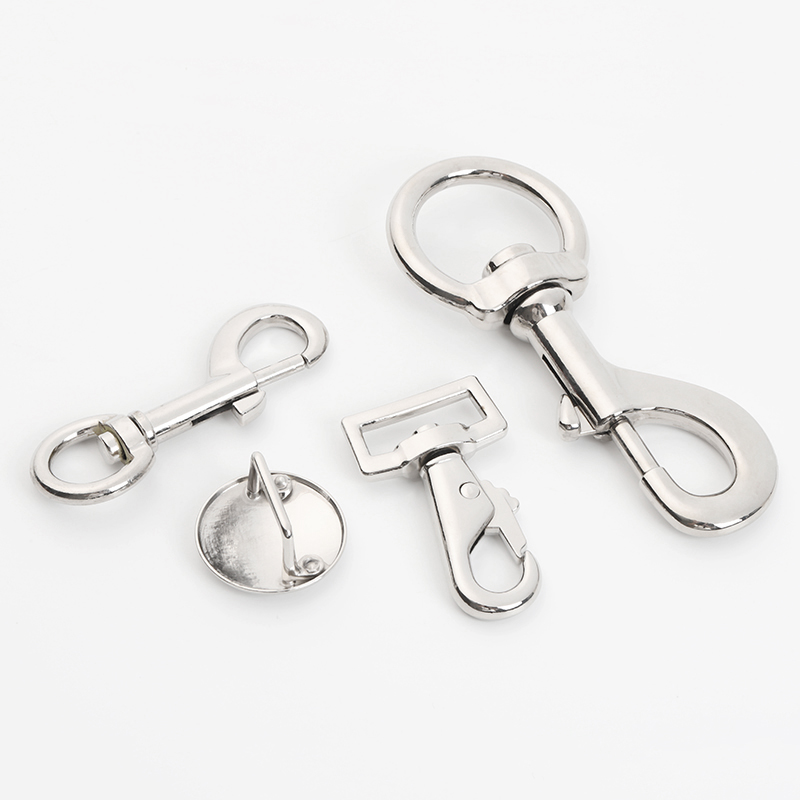

This product group includes three swivel snap hook configurations and one round pin-back button. Select the style according to the required attachment opening, overall size, and finished-product structure.

Available Styles

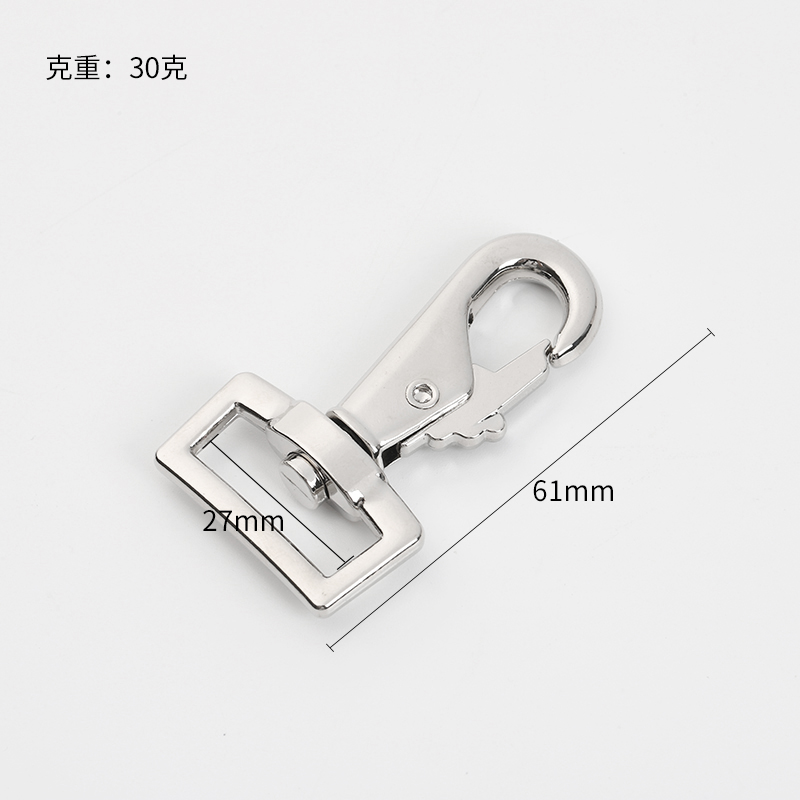

Style A – Rectangular-Eye Swivel Snap Hook

Designed with a rectangular attachment opening suitable for compatible webbing or strap structures.

• Inner opening width: 27 mm
• Overall length: 61 mm
• Individual weight: approximately 30 g

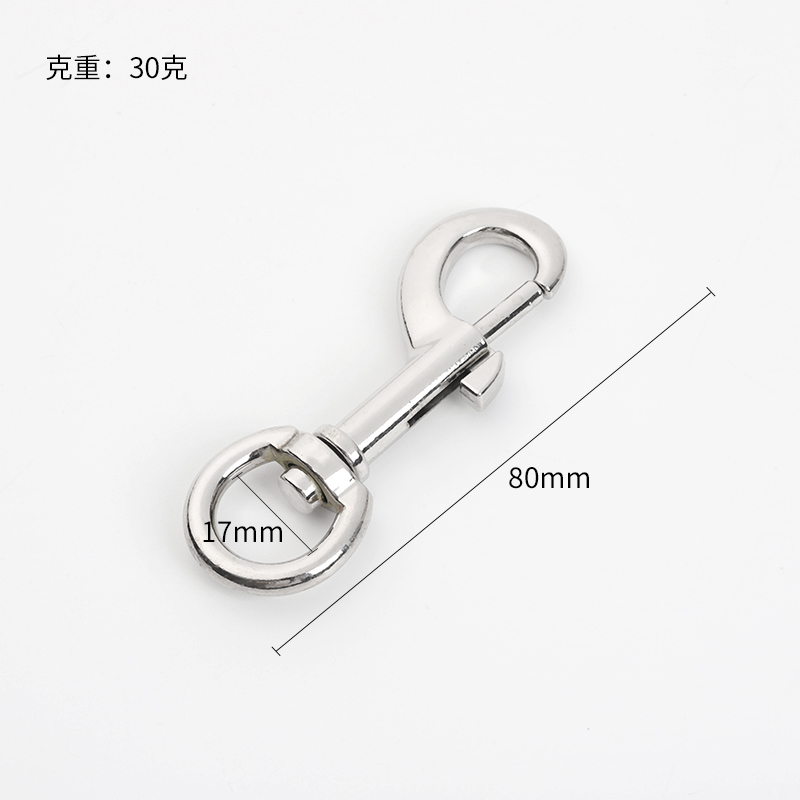

Style B – Round-Eye Swivel Snap Hook

Features a round attachment eye and a swivel connection for flexible positioning.

• Inner ring diameter: 17 mm
• Overall length: 80 mm
• Individual weight: approximately 30 g

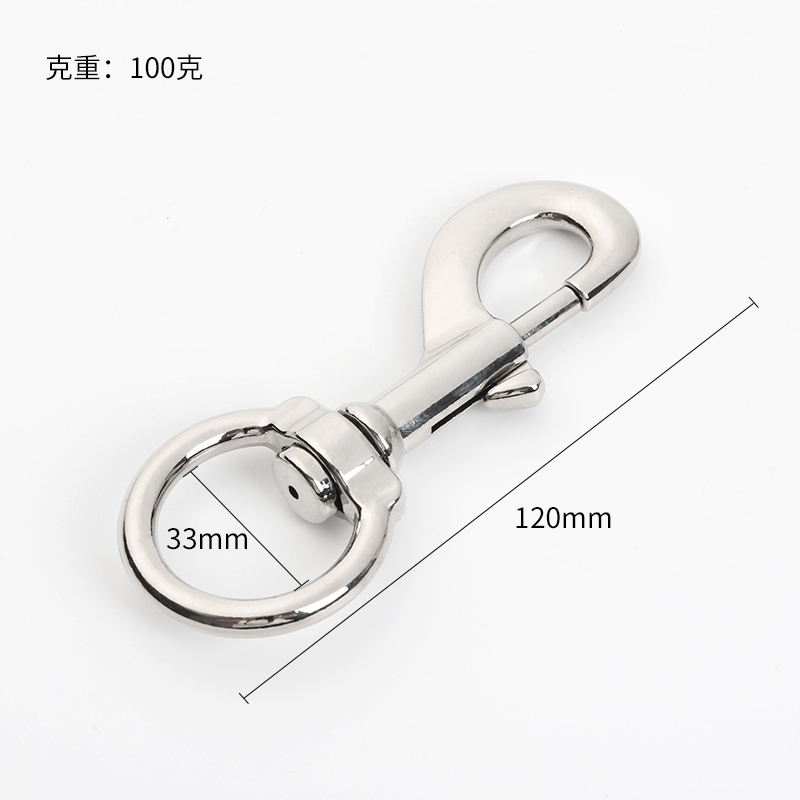

Style C – Large Round-Eye Swivel Snap Hook

A larger swivel hook with a wider round attachment eye.

• Inner ring diameter: 33 mm
• Overall length: 120 mm
• Individual weight: approximately 100 g

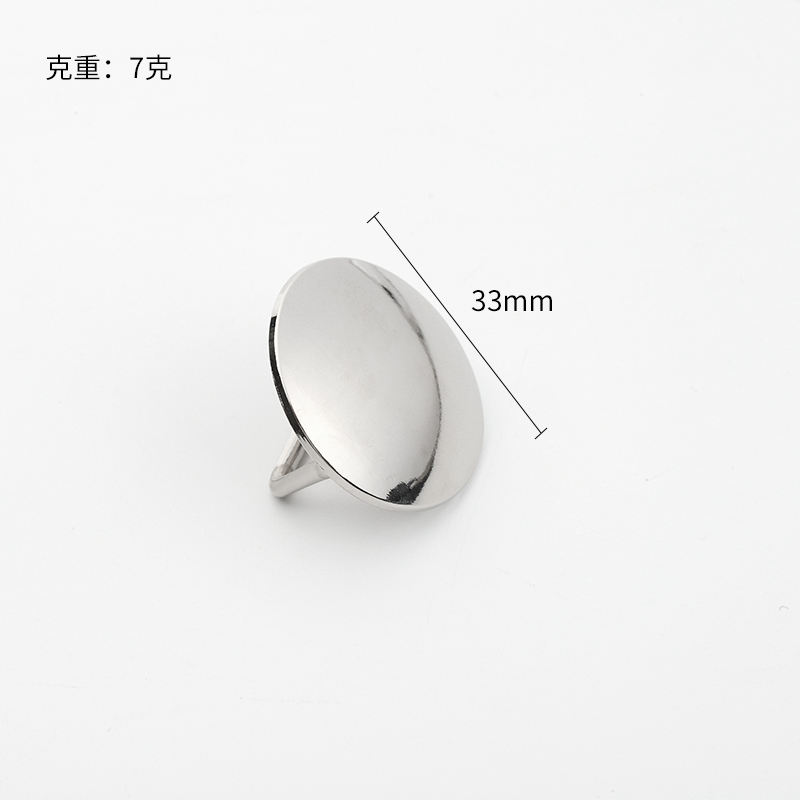

Style D – Round Pin-Back Button

A round-faced hardware component with a pin structure on the reverse side.

• Face diameter: 33 mm
• Individual weight: approximately 7 g
• Overall length: not specified in the source material

Structural Features

• Press-to-open snap closure on Styles A, B, and C
• Rotating connection between the hook and attachment eye
• Rectangular and round attachment options
• Pin-back structure on Style D
• Polished silver-tone surface appearance

Important Information

Dimensions and weights are based on the available product images and may have minor manual-measurement tolerances.

Material composition, coating specification, corrosion-resistance grade, and rated load have not been provided. Buyers should test the selected component within their finished-product structure before bulk purchasing or production use.

Not intended for climbing, lifting, fall protection, personal protective equipment, or other safety-critical applications unless independently tested and certified for that purpose.

Technical Resources

• Metal Hardware Size Guide — check opening size, webbing width and fit before ordering.
• Metal Hardware Surface Finish Guide — compare common finishes and appearance considerations.
• Metal Hardware Quality Inspection Checklist — review dimensional, functional and surface checks.
• Custom Metal Hardware Manufacturing Process — learn how custom dimensions and finishes are evaluated.

Need a sample or custom specification? Contact Jinxing Hardware with the required style, dimensions, finish and intended application.
